Digital drawings for metal in pdf and dxf format.

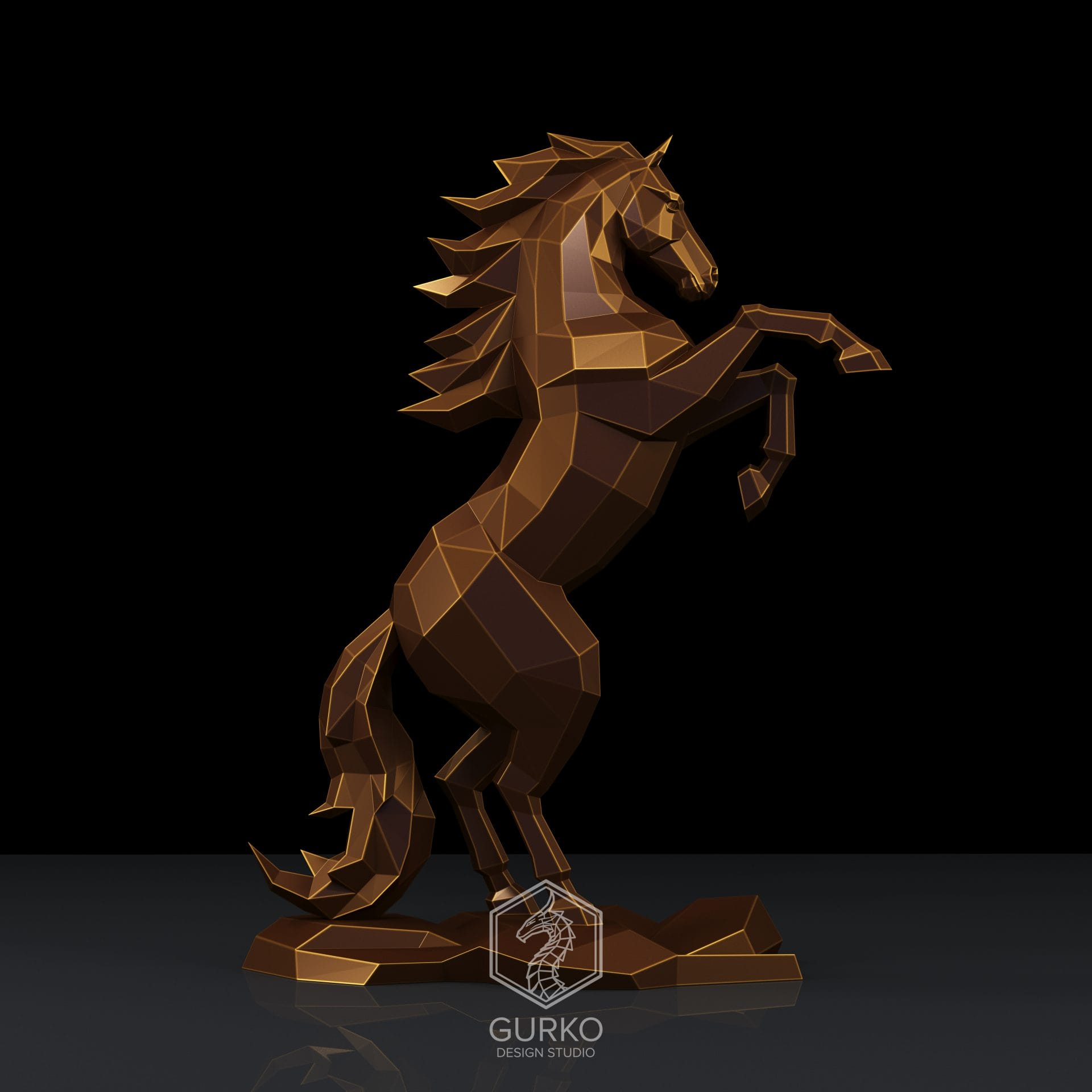

Polygonal model drawings for metal «Rearing Horse Metal 2500 mm»
Horse 565 х 2040 х 2500 mm in size.
The model consists of 218 parts 3 sheet of 1250×2500 mm format.
Platform 1800 х 1140 х 170 mm in size.
The model consists of 18 parts 1,5 sheet of 1250×2500 mm format.
1) Pdf drawings
The Digital instructions include step-by-step assembly instructions, drawings with bend angles and drawings with face numbering.
2) Digital drawings in dxf format
The drawings are executed on a sheet of 1250×2500 mm format. All elements are laid out on separate layers
