This is a DIGITAL DOWNLOAD item – You will not receive a physical item
Drawing for a laser machine in CDR/PDF/DXF format, for individual use. You can cut and assemble the model yourself!
Also, you will be provided detailed photo assembling instructions, links to additional files for 3d-printing, list of required equipment.

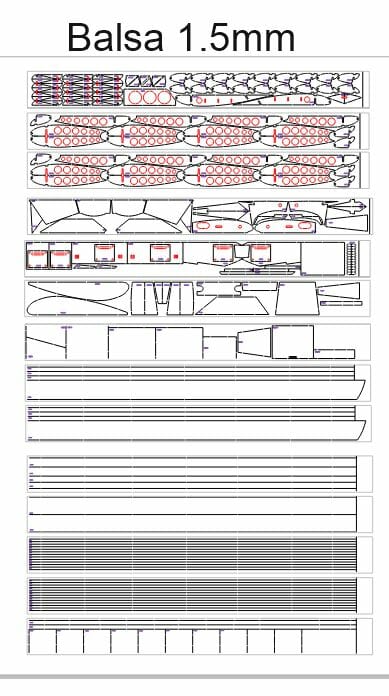

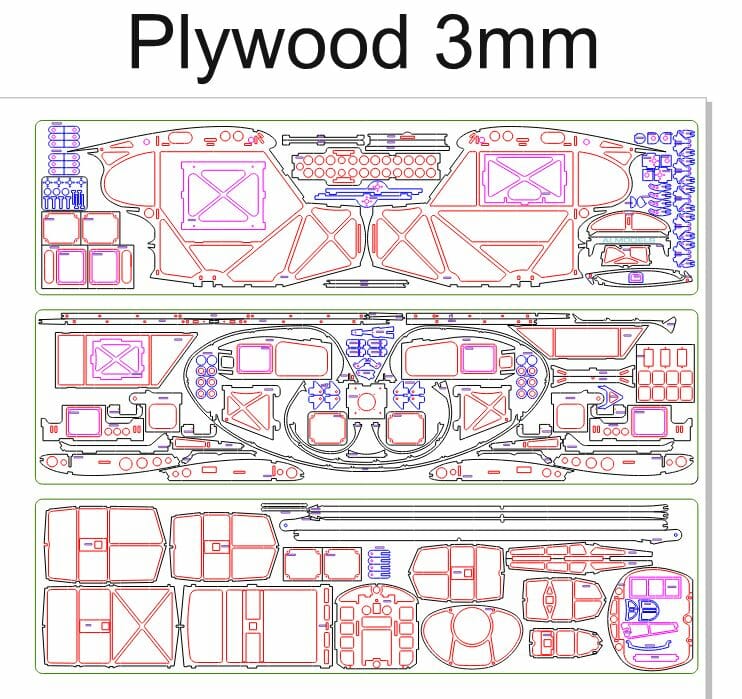

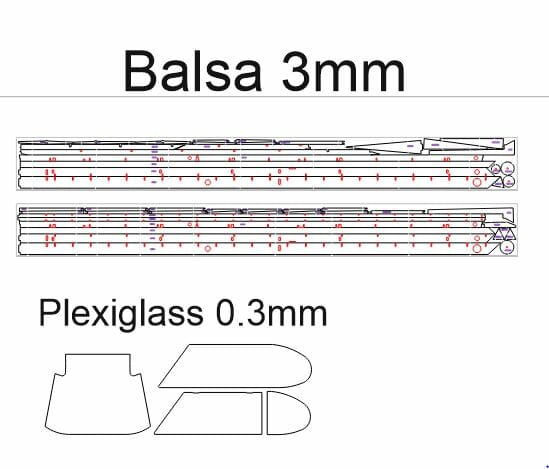

You will need materials: Plywood 3mm, Balsa 3mm, Balsa 1.5mm, Plexiglas or equivalent 0.3mm
You will need a machine field not less than 950*300mm
Wingspan 1.96m
Flight weight ~2,3-2,5kg
What electronics is required?
⏺ The electric motor is brushless, with a power of ~ 1500W, for a propeller with a diameter of 13-14-15 inches. Weighing ~150-200gr
⏺ Speed control (ESC) corresponding to the selected electric motor
⏺ Power LiPo battery ~4-5S ~1800-3000mAh
⏺ Servos ~ 13 gr., metal gear – 6 pcs
⏺ Servo extenders, at least ~50 cm long – 6pcs
⏺ 6-8 pin connector 2 pcs. (optional, but recommended, for the convenience of quickly connecting servos in the wing)
⏺ RC receiver (minimum 6-8 channels)
⏺ RC transmitter (minimum 6-8 channels)
These digital files may be used for any personal projects.
They may not be sold or distributed for free in their original format. You cannot sell this file as a digital file.
If you get a wrong file type or if there is a problem with the file please contact me.
