Drawing Piper Super Cub Pa-18

Sold by
ALMODELS
@ Alexey Efimov

Drawing Piper Super Cub Pa-18

20.00

Added to wishlistRemoved from wishlist 2

Sold: 17

Report Abuse

This is a DIGITAL DOWNLOAD item – You will not receive a physical item

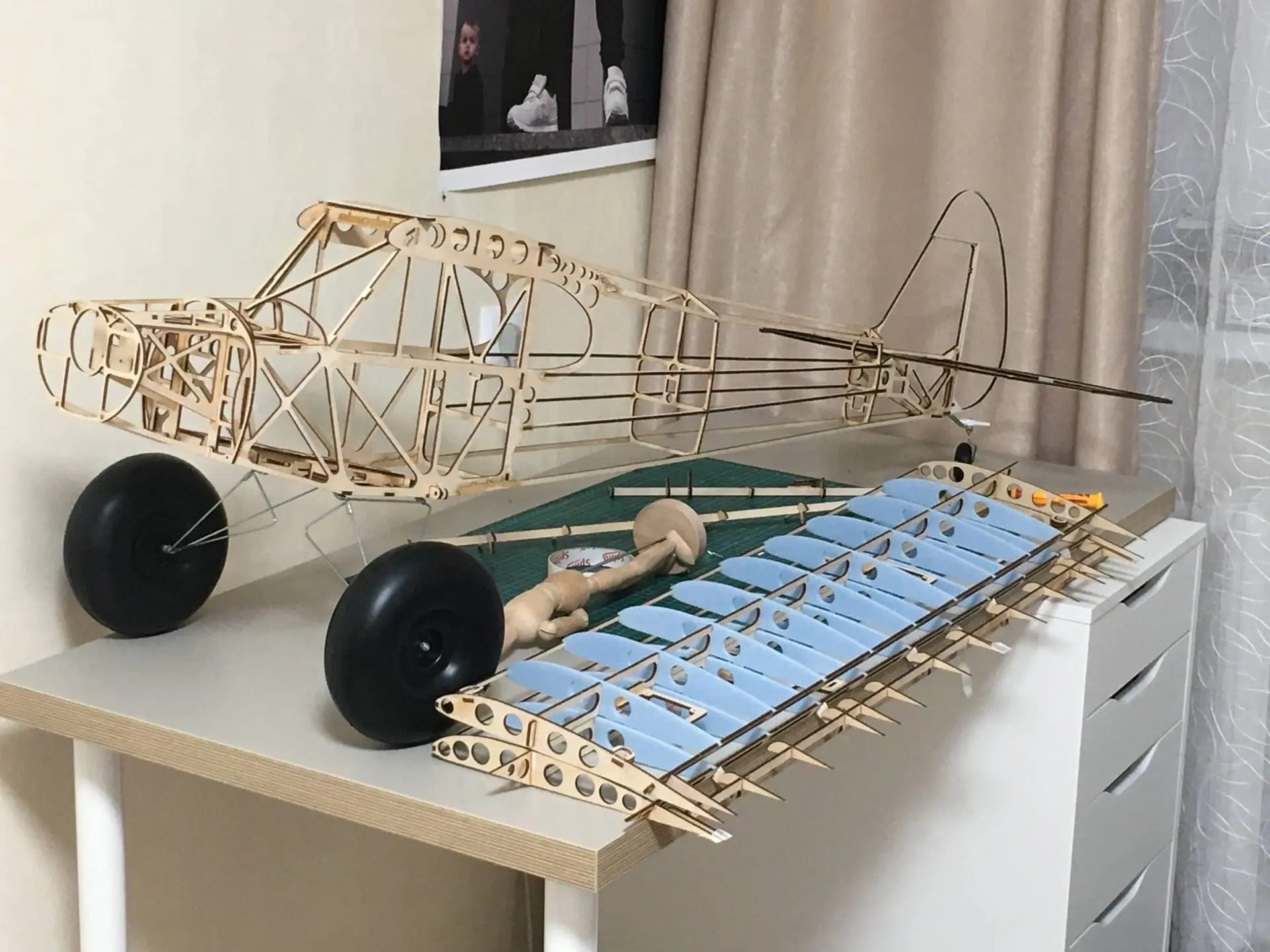

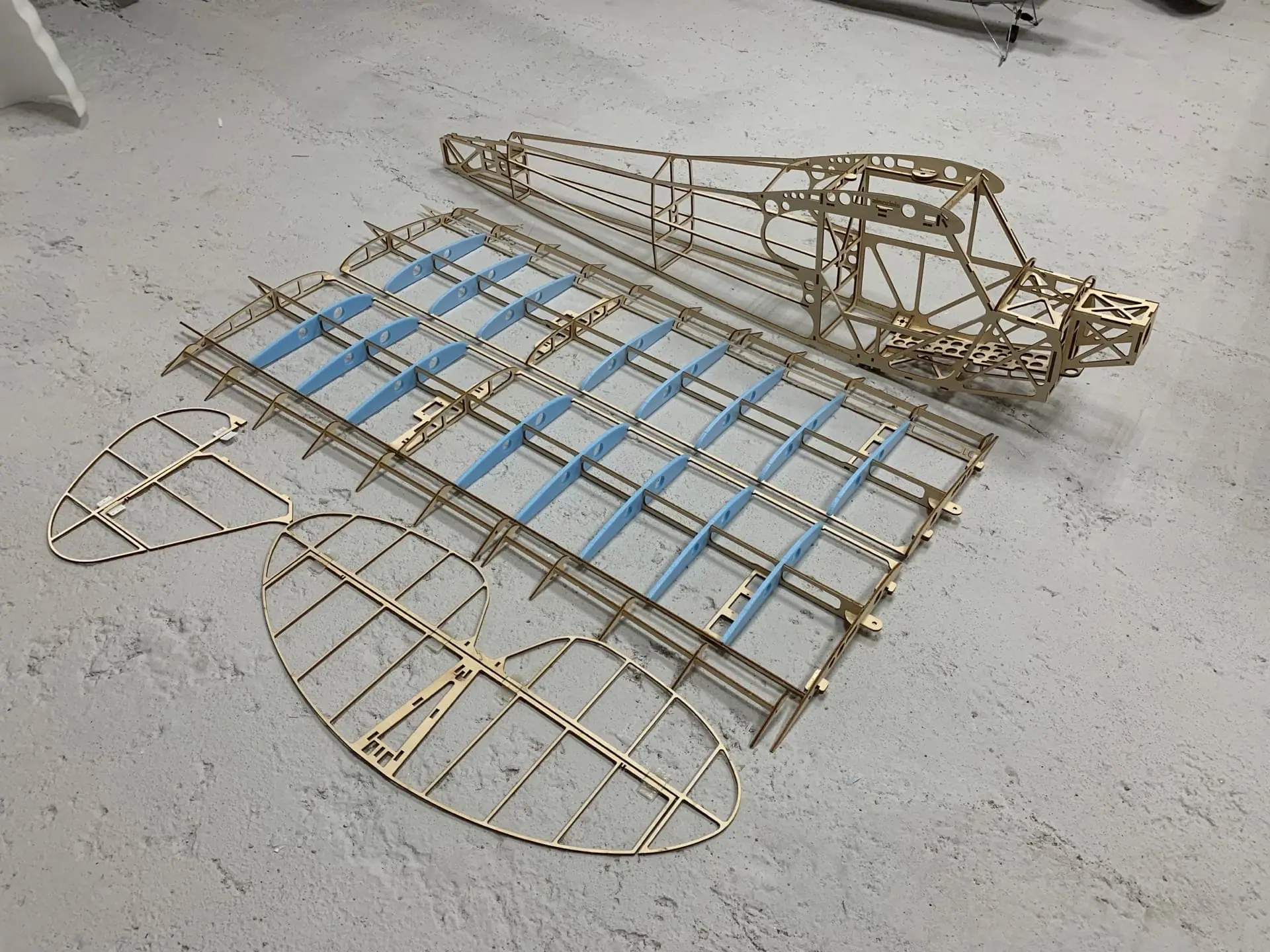

Drawing for a laser machine in CDR/PDF/DXF format, for individual use. You can cut and assemble the model yourself!

You will need materials: Plywood 3mm, Depron 3mm, Depron 5mm, Plexiglas or equivalent 0.3mm

You will need a machine field not less than 950*300mm

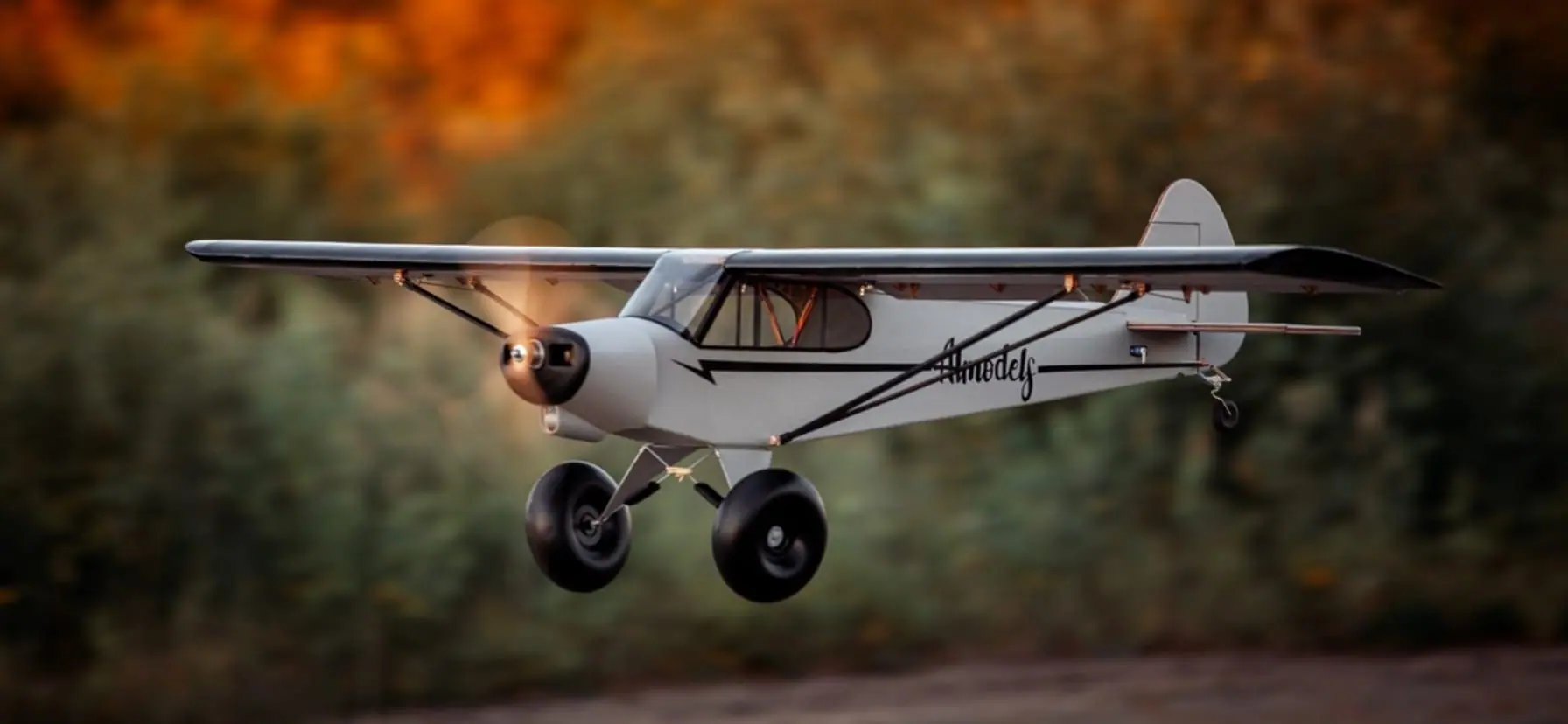

Model size:

Wingspan 1930mm

Length 1220mm

Recommended weight up to 2 kg

BOM (materials needed to complete to complete the KIT):

Motor: size ~3548 – 1100KV or equivalent.

ESC: 80-100A

Prop: APC 13* 6.5

Battery: 3S, 1600-2500 mAh

Servo: 12-13g with a metal gears – 6 pcs.

Model wheels D~150mm

Tail wheel assembly -1pc

Pin hinges -6pcs

Flat hinges for a door 24*12 – 4 pieces

8 pins connector MPX – 2 pairs



These digital files may be used for any personal projects.

They may not be sold or distributed for free in their original format. You cannot sell this file as a digital file.

If you get a wrong file type or if there is a problem with the file please contact me.
