“FOAM” KIT Piper Super Cub Pa-18

Attention!

Depron to cover the model is not included! You need to buy depron yourself.

KIT is cut to order, after payment within 15-30 days I send the order.

Piper Super Cube Pa-18

Wingspan: 1930mm

Length: 1230mm

Recommended takeoff weight: up to 1,8 kg-2.5kg

What's included?

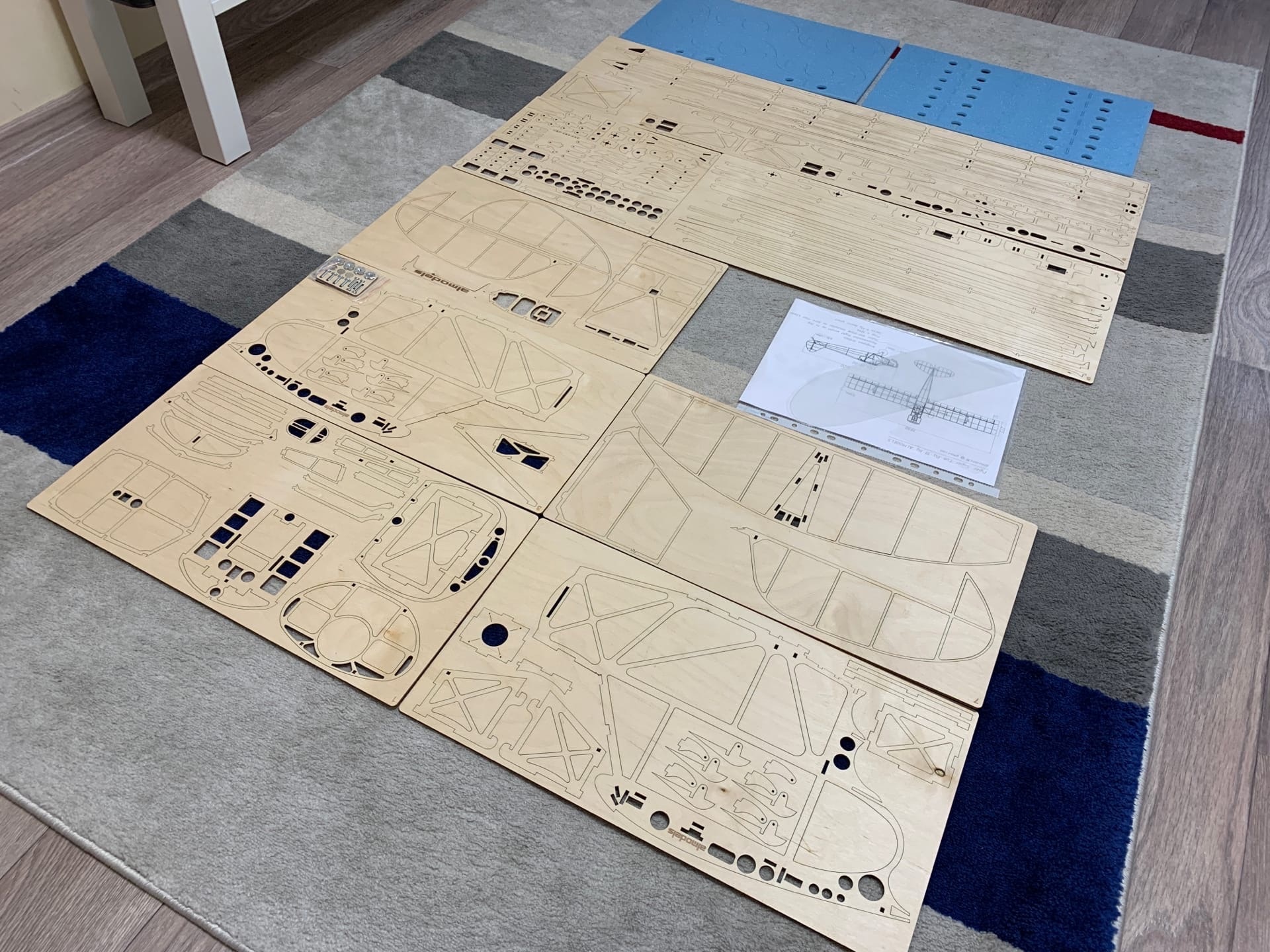

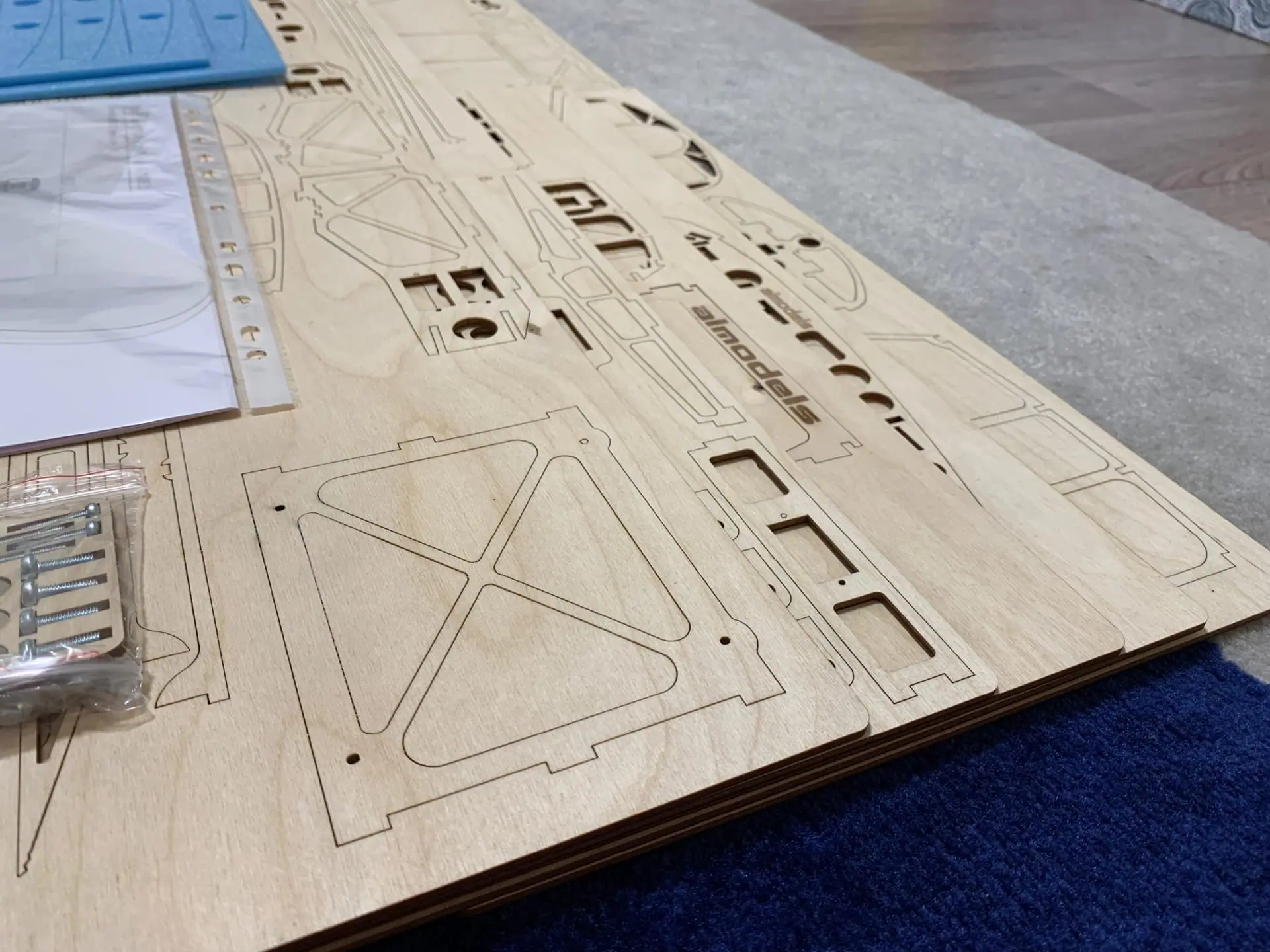

·       Details made of plywood, thickness 3 mm

·       EPS parts, one set, thickness 5mm.

·       Glazing parts, 1 set (PET material 0.3mm)

·       Drive nuts m4 - 4 pcs.

·       M4 screws - 4pcs.

·       10pcs M2 screws.

·       M3 screws - 4pcs.

·       Nuts M2-10pcs.

·       Nuts M3-4pcs.

·       Magnets round 10*1.5mm, 6pcs.

What needs to be purchased?

·       Depron 3mm ~10 sheets size 1000*500mm (substrate under the floor, for covering the model).

·       Bicycle spokes, diameter 2mm, length ~260-290mm, it is necessary that the set includes screws for the spokes - 6 pcs.

·       Studs or M4 screws 70 mm long (for chassis wheel axle).

·       Model wheels, diameter 100-160mm

·       Tail swivel wheel, diameter not less than 30mm

·       Handlebar pulls + fittings: rod clamp, rod tip. Traction can be made from a bicycle spoke with a diameter of 2mm. I recommend carbon rods with a diameter of 1.5-2mm as rods.

·       Model hinges, flat format, size, for example, ~ 28 * 16 mm - 6 pcs.


The manufacturer reserves the right to send the buyer an updated version of the kit.
