Welding Project Plans Drawings Dachshund (DXF, PDF)

All questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail

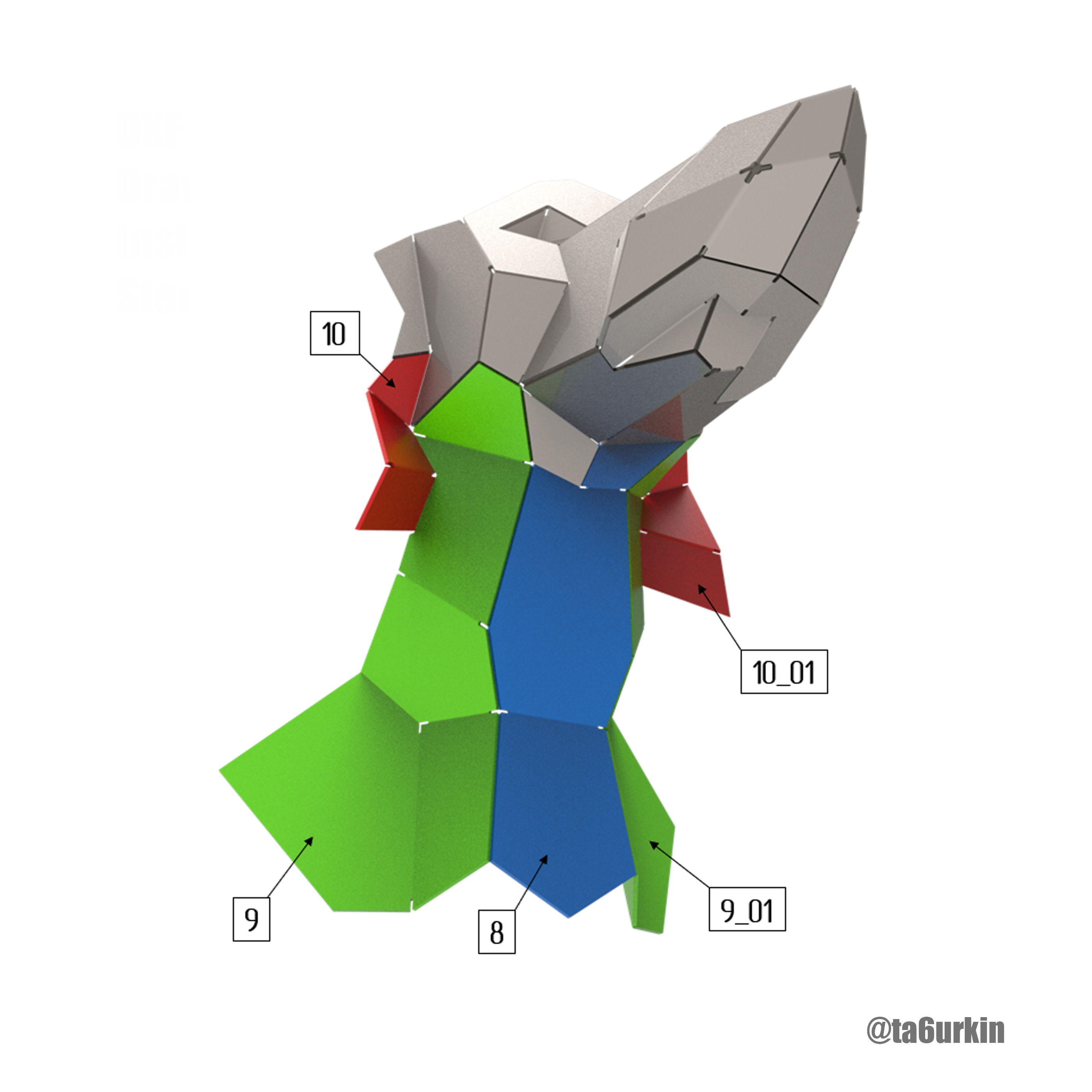

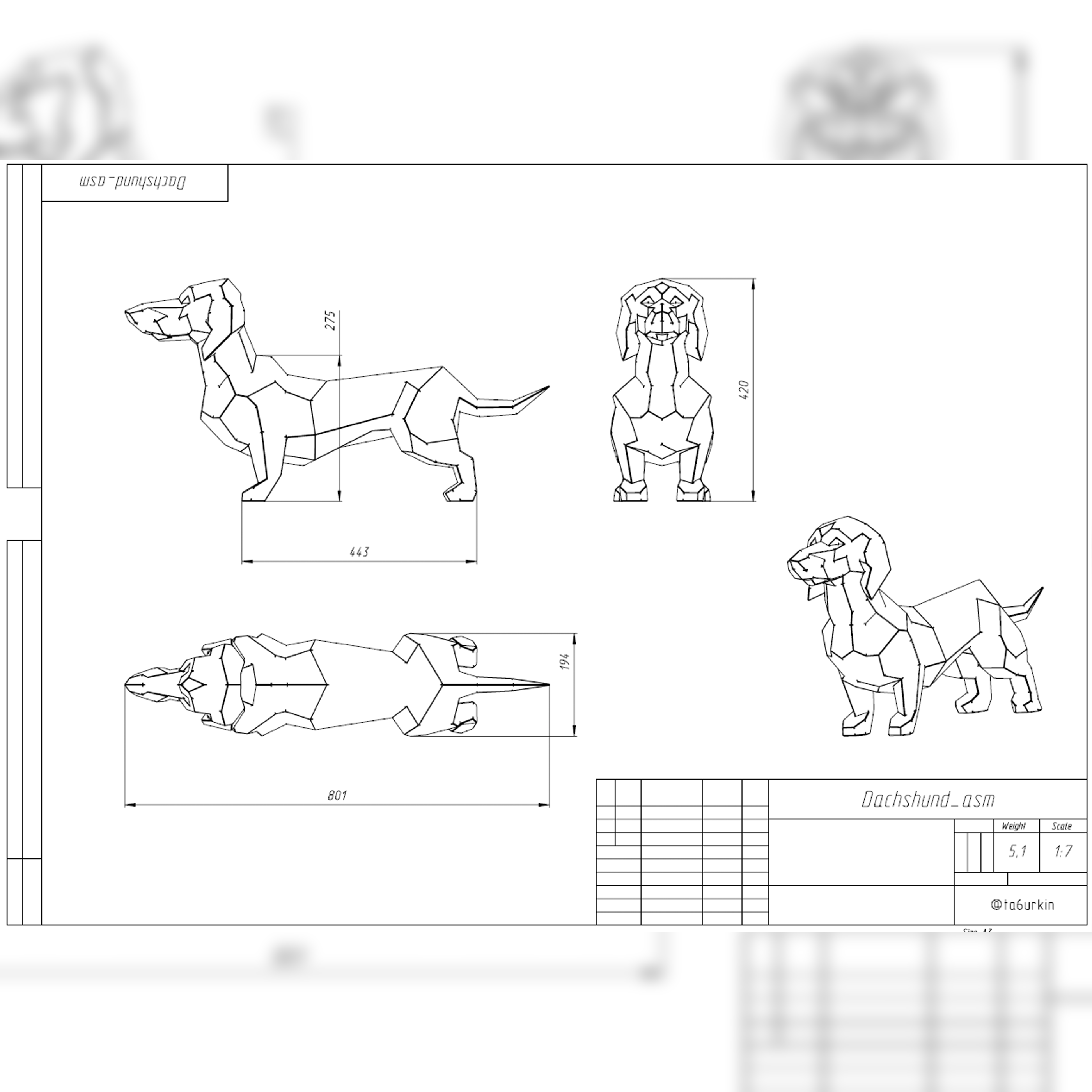

The Dachshund involves the manufacture of steel with a thickness of 1.5 mm and a bending radius of 1 mm. The weight of the Dachshund is about 5,1 kg. There are 46 details in total. The design documentation includes 31 pages, 29 of which are bending drawings. The instruction includes 21 pages in the order of assembly. The bend line is drawn along the cutouts in the part, in accordance with the drawing. The archive includes: dxf (29 pcs.- files separately and for a sheet 2400×1200, 2500×1250, 3000×1500), Drawings (31 pages), Instructions (21 pages). Overall dimensions of the sculpture (LxWxH): 801х194х420.

There is no engraving on the dxf, bending is performed along the line indicated by drop-shaped cutouts at the ends of the bending line.

DXF are available both in the form of parts separately, and placed for a sheet of metal with a size of 2400×1200, 2500x1250mm, 3000×1500.

The project includes paper stencils for printing in A2 format (PDF).

If you need to create a stencil for printing in PDF format or create a DXF file with all the parts located on the sheet metal format you need, please contact me.

The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities.

3D models are not included in the project, if you need, then STP models of all parts, except for mirror parts, (not assembled) can be provided for an additional fee. But I do not guarantee that your bending calculation software will display the models correctly.

Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.

If you do not download the project yourself, I will send it to you by e-mail within 24 hours, you can also contact me if you are unable to download the project.

This project is being sold only by me, if someone else offers you my projects for purchase, then these are scammers.

Thank you and good luck with your work!
