All questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail

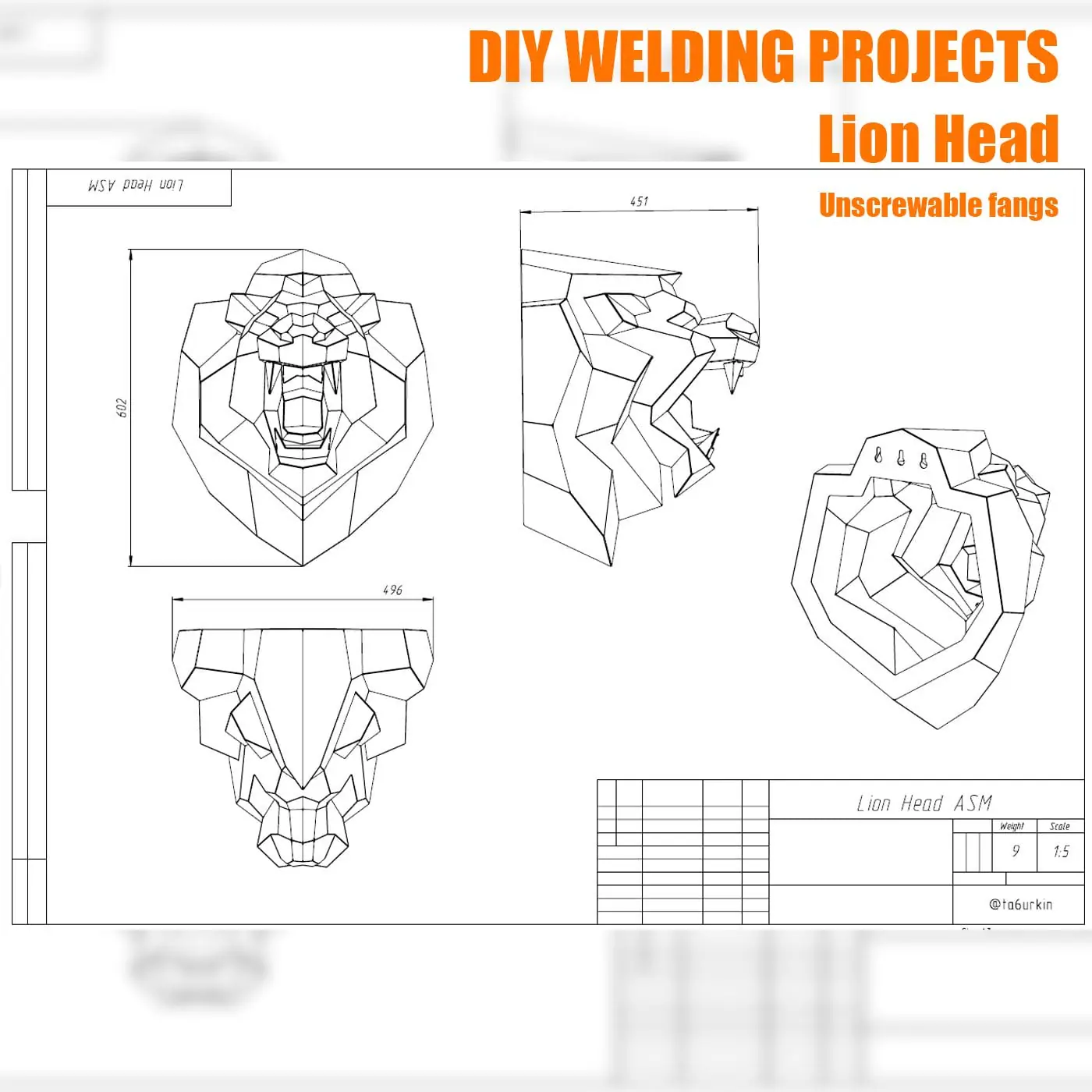

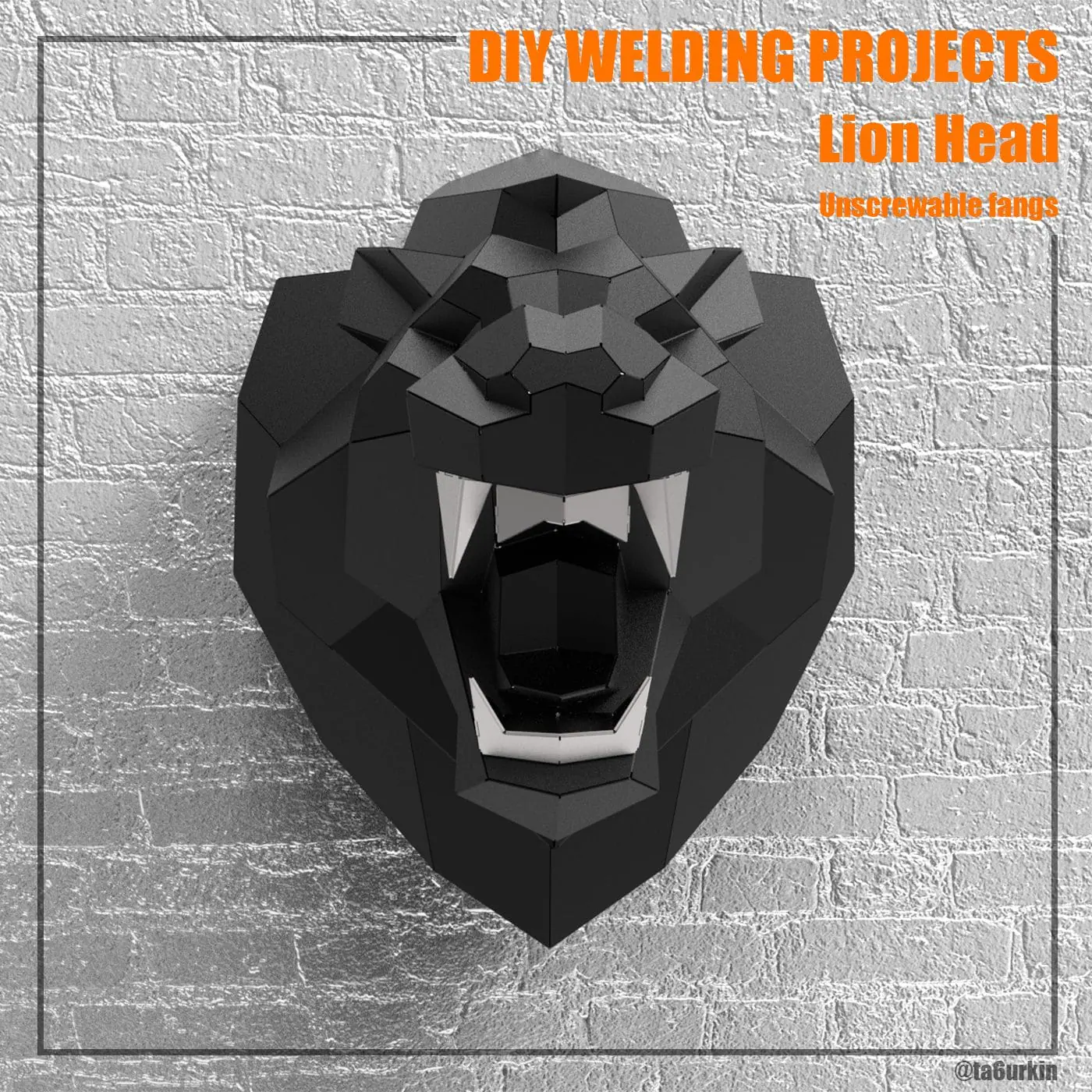

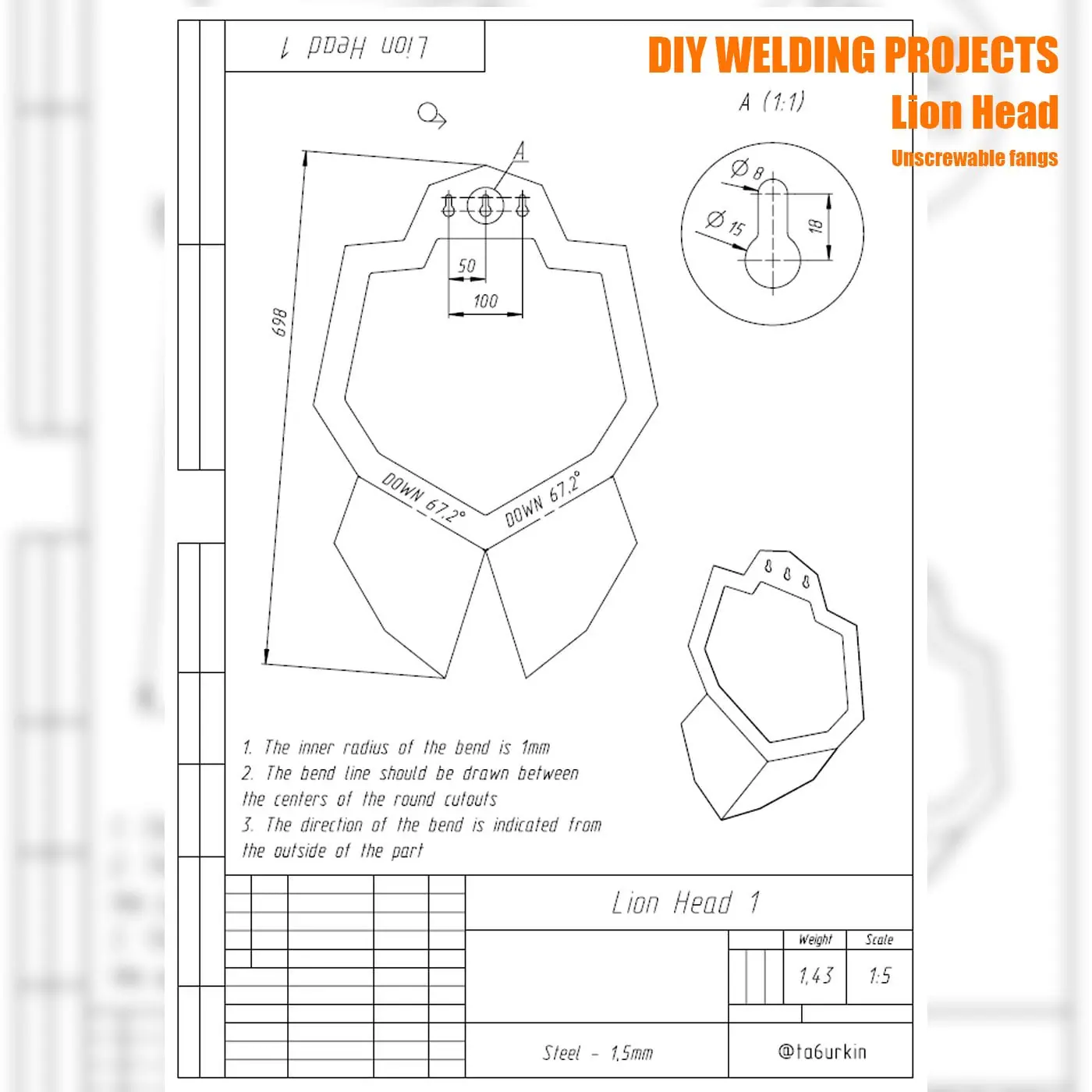

The Lion Head involves the manufacture of steel with a thickness 1,5 mm and a bending radius 1 mm. The weight of the Lion Head is about 9 kg. There are 43 parts in total (excluding fastening parts). The design documentation includes 33 pages, 28 of which are bending drawings. The instruction includes 25 pages in the order of assembly. The bend line is drawn along the cutouts in the part, in accordance with the drawing. The archive includes: dxf (43 pcs.- files separately and for a sheet 2000×1000, 2400×1200, 2500×1250, 3000×1500), Drawings (33 pages), Instructions (25 pages). Overall dimensions of the sculpture (LxWxH): 451х2496х602 mm.
For this project, a set of fasteners is required: Bolt M6x10 DIN 933 – 8 pcs, Nut M6 DIN 934 – 8 pcs. If you use washers for fastening, then use bolts M6x12 DIN 933
DXF are available both in the form of parts separately, and placed for a sheet of metal with a size 2000х1000, 2400×1200, 2500x1250mm, 3000×1500.
The project is available DXF with engraving and without engraving. Remember to set up the layers before cutting, otherwise the machine may cut the parts along the engraving line. The engraving layer is on the inside of the part, the bending in the drawings is indicated on the outside of the part. Cutting layer – “Cut”, engraving layer – “Engrav”
If you need to create a stencil for printing in PDF format or create a DXF file with all the parts located on the sheet metal format you need, please contact me.
The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities.
3D models are not included in the project, if you need, then STP models of all parts, except for mirror parts, (not assembled) can be provided for an additional fee. But I do not guarantee that your bending calculation software will display the models correctly.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
If you do not download the project yourself, I will send it to you by e-mail within 24 hours, you can also contact me if you are unable to download the project.
This project is being sold only by me, if someone else offers you my projects for purchase, then these are scammers.
Thank you and good luck with your work!
