Camper trailer project (without chassis project, with STP model)
DXF Welding Projects
ATTENTION!!! ALL DRAWINGS AND INSTRUCTIONS IN RUSSIAN
This project requires significant technical capabilities, such as: laser cutting of aluminum profile pipe, laser cutting of sheet metal, laser cutting and milling cutting of plywood and wood, bending of round pipe, bending of sheet metal, and the corresponding welding and readout capability of welds.
Since most likely you will not use this project for personal production, I recommend using this project as a theoretical introduction.
This project was developed for mounting on a purchased trailer, which can only be purchased in the CIS, if you need to know the model of this trailer, please ask me.
The archive also provides tabular files with purchased materials (also in Russian). For elements such as locks, handles, batteries, balloons, etc. there are links to sites, you can find analogues on English-language sites.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
For all questions, you can contact me in direct instagram (@ta6urkin)
299.00 €~ 318.32 $
Sold: 0
Report AbuseATTENTION!!! ALL DRAWINGS AND INSTRUCTIONS IN RUSSIAN
I am not making any additional changes to the project
All questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail
This project requires significant technical capabilities, such as: laser cutting of aluminum profile pipe, laser cutting of sheet metal, laser cutting and milling cutting of plywood and wood, bending of round pipe, bending of sheet metal, and the corresponding welding and readout capability of welds.
Since most likely you will not use this project for personal production, I recommend using this project as a theoretical introduction.
This project was developed for mounting on a purchased trailer, which can only be purchased in the CIS, if you need to know the model of this trailer, please ask me.
The archive also provides tabular files with purchased materials (also in Russian). For elements such as locks, handles, batteries, balloons, etc. there are links to sites, you can find analogues on English-language sites.

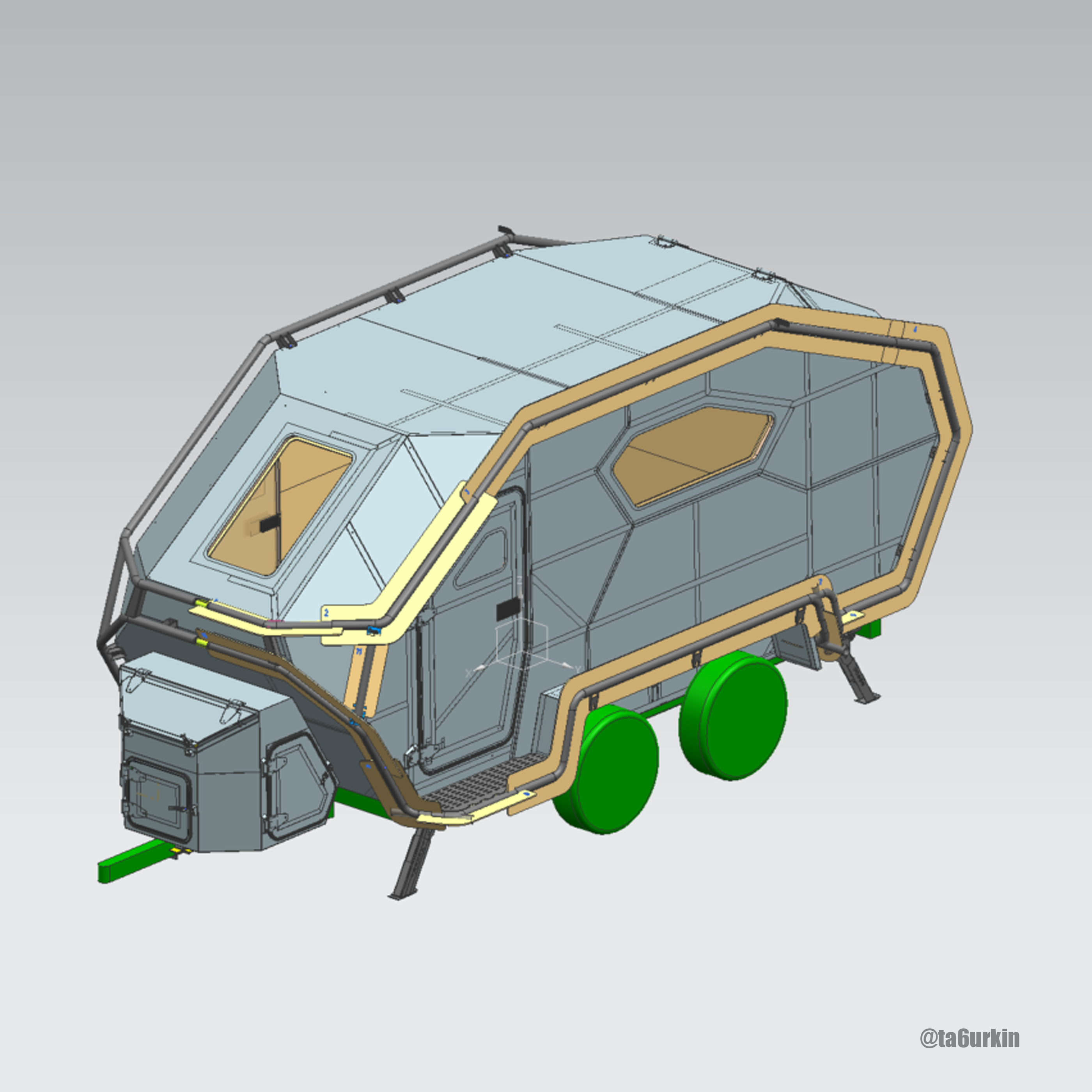

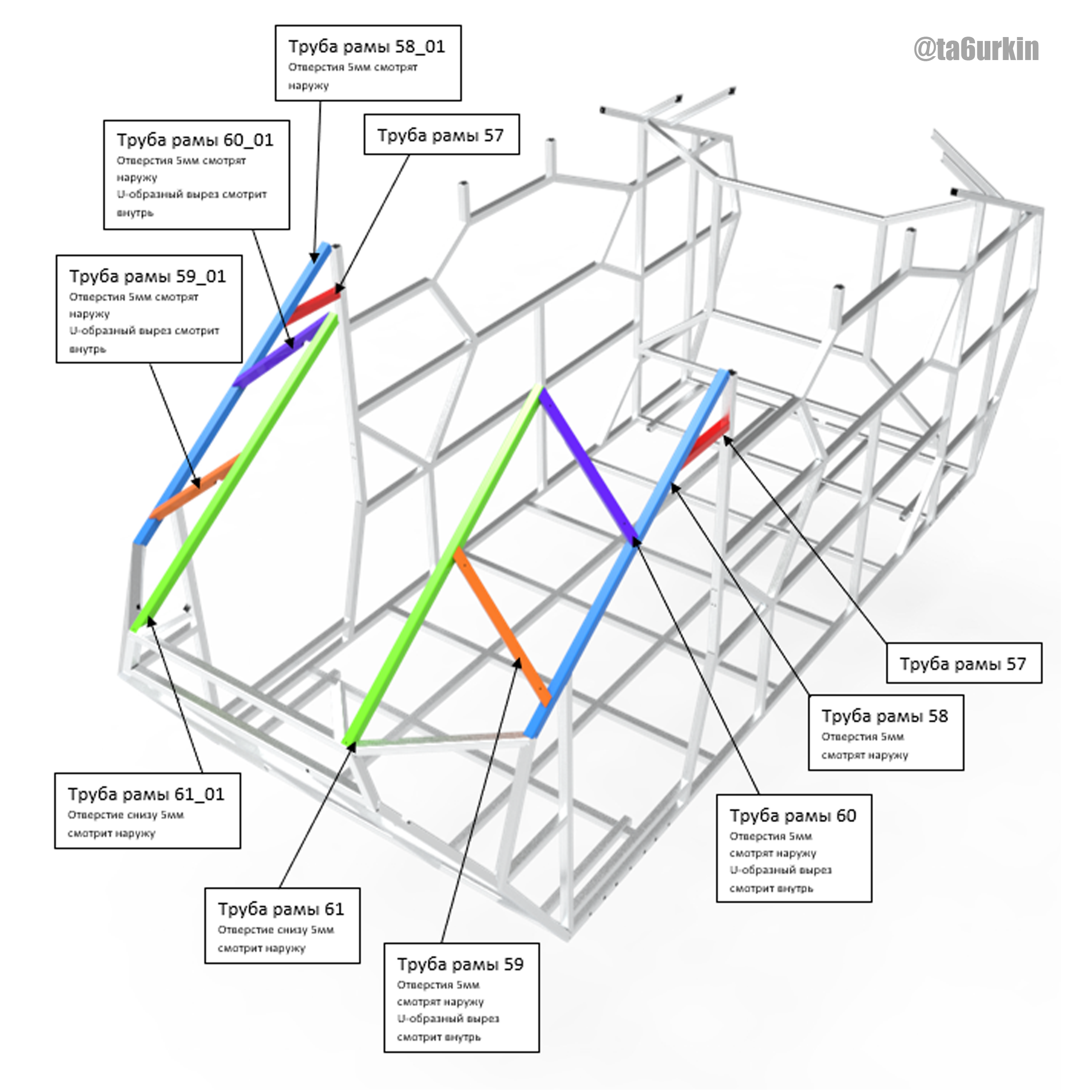

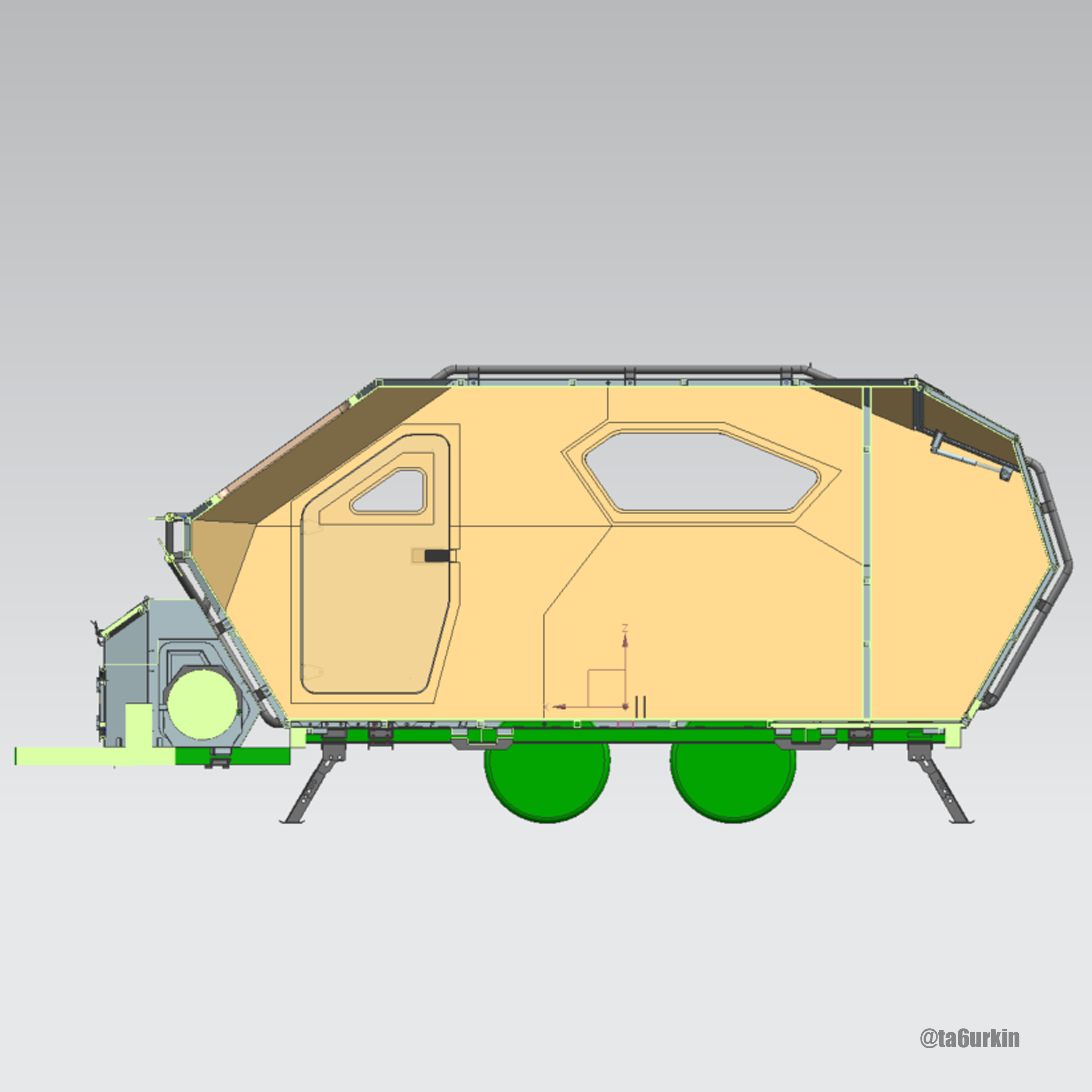

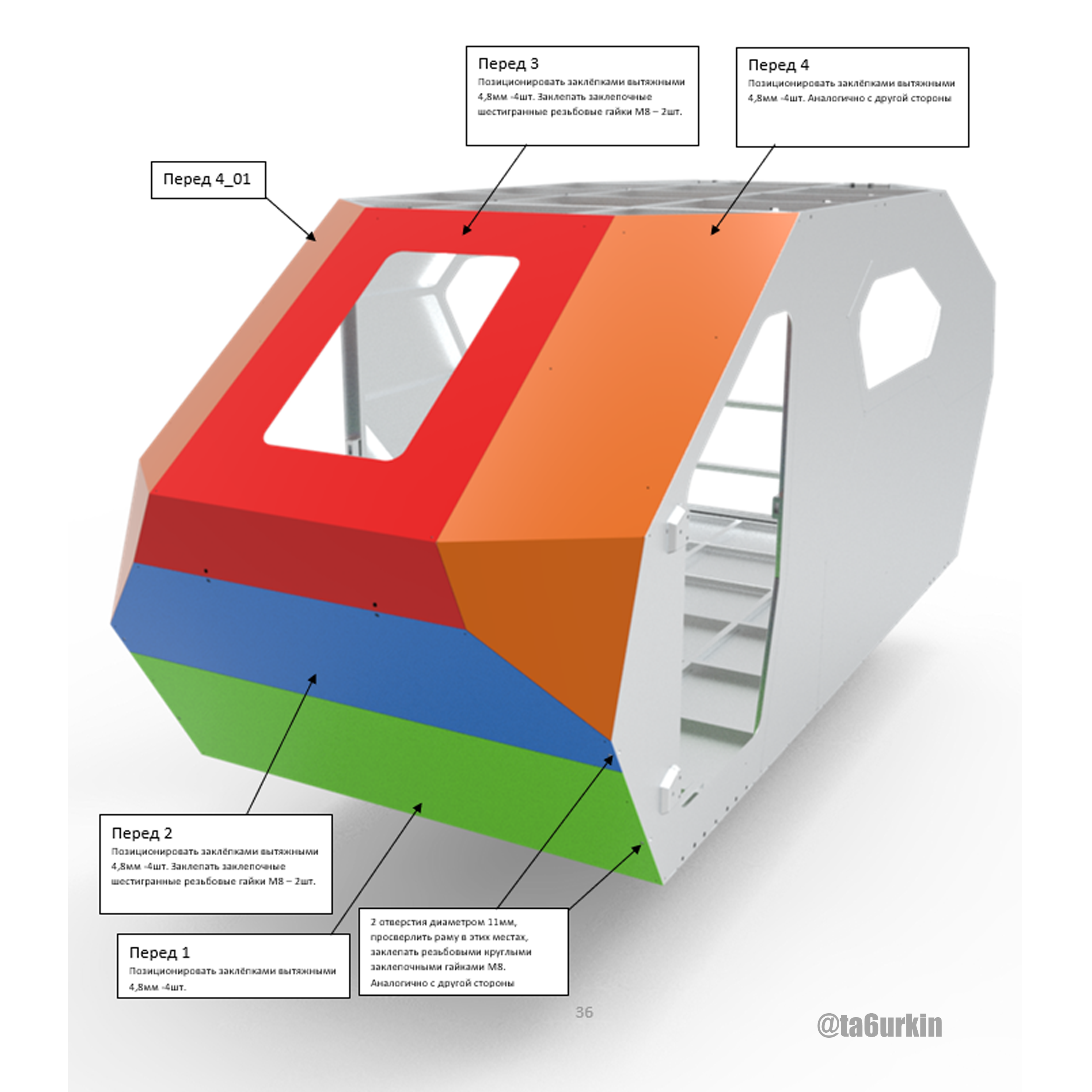

The archive includes all the necessary files for cutting, bending drawings, assembly instructions, list of purchased materials and components (ALL IN RUSSIAN), and STP model. For questions about filling the project, also ask any questions.
I remind you that it is better not to use this project for production due to its high cost and complexity. It is desirable to use it for theoretical acquaintance.

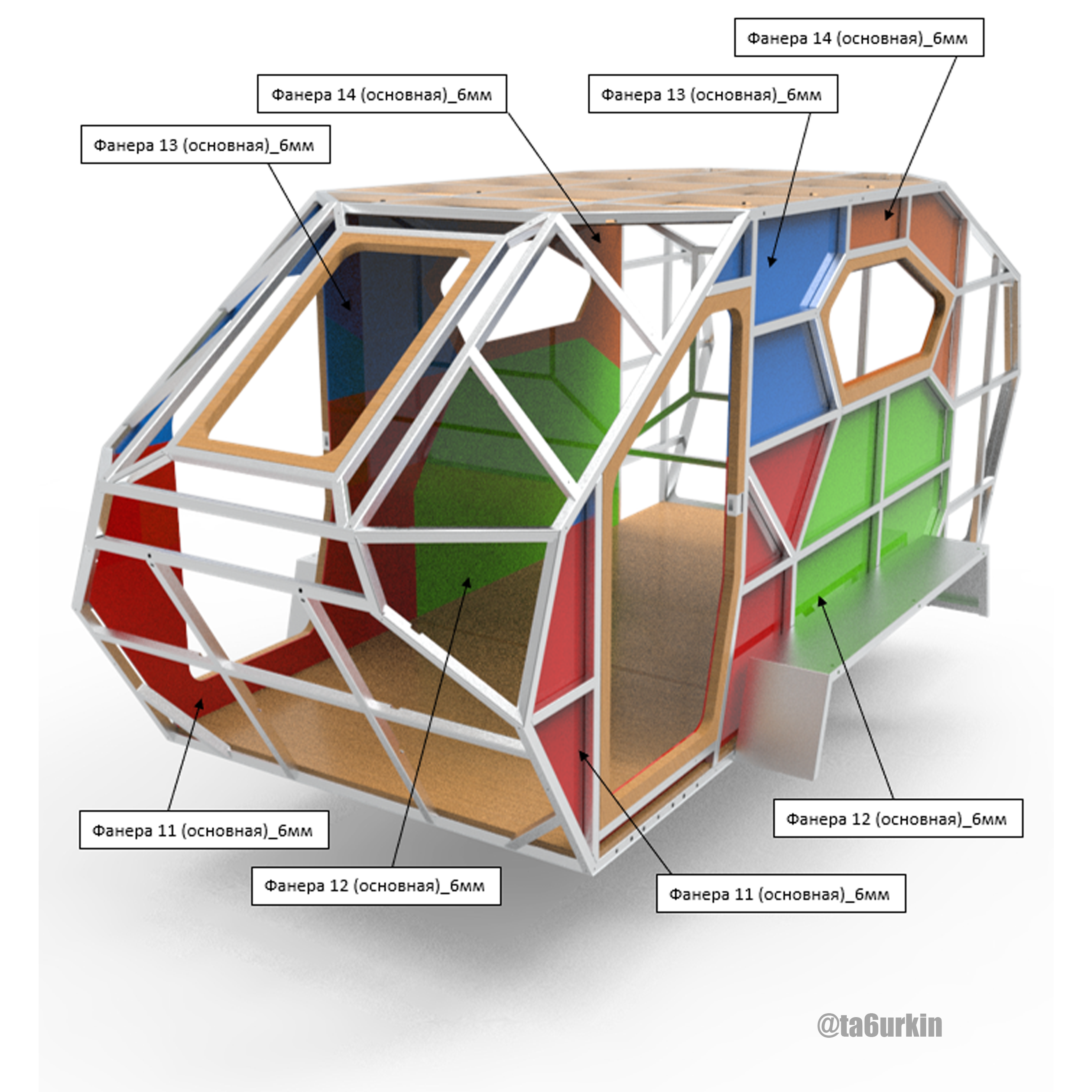

In the last image around the round frame around the camper, this is a plywood pipe template.
The interior furniture is not designed, and the windows also need to be ordered separately according to the model.
The drawings are not made exactly with GOST, ISO, and other standards. The drawings are made more minimalistic, with all the necessary information for workers.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
