Welding Project Plans Drawings Rock Planter (DXF, PDF)
DXF Welding Projects
Steel Sheet Metal Drawings Plans Pattern Template Rock Planter Project Sculpture (dxf, PDF)
This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine or manually with a convenient cutting tool using a stencil (for example, a grinder). Also, you should be able to bend the parts on a bending machine or manually, at the end welding the parts together according to the instructions and, if desired, cleaning and painting the finished product.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
43.00 €~ 45.78 $
Sold: 8
Report AbuseAll questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail
Steel Sheet Metal Drawings Plans Pattern Template Rock Planter Project Sculpture (dxf, PDF)

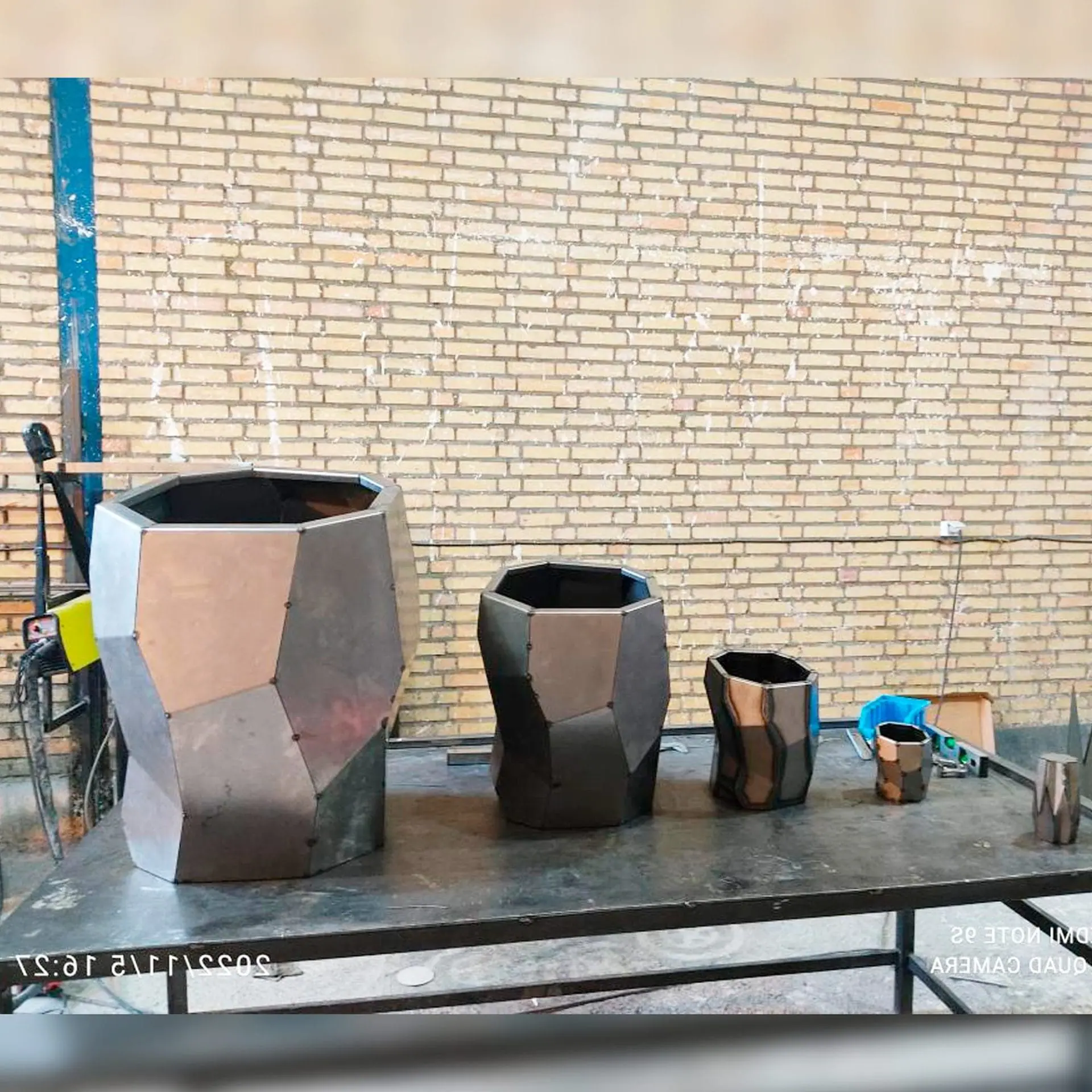

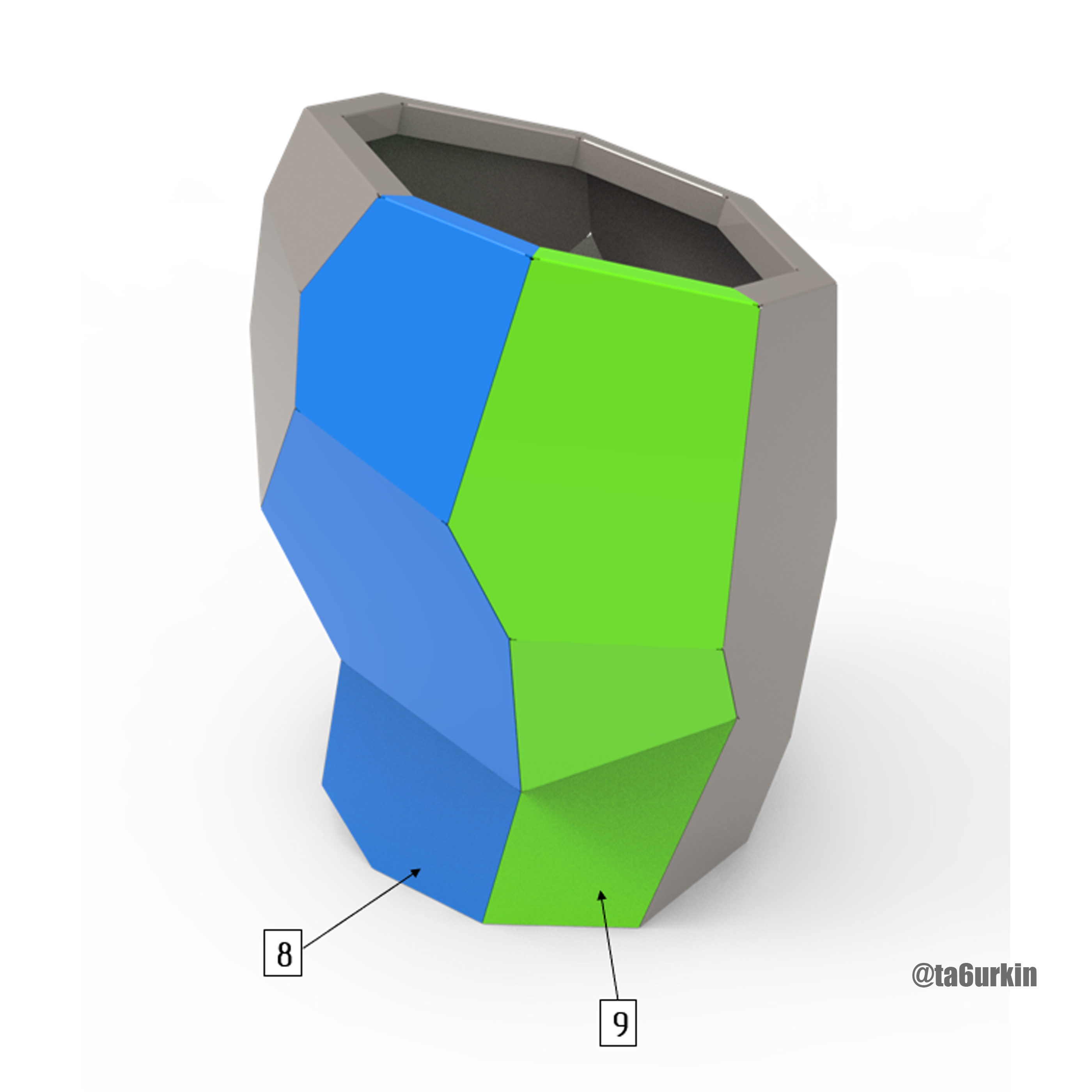

Rock Planter involves the manufacture of steel with a thickness of 1.5 mm and a bending radius of 1 mm. The weight of the Rock Planter is about 15,5 kg. There are 9 details in total. The design documentation includes 11 pages, 9 of which are bending drawings. The instruction includes 6 pages in the order of assembly. The bend line is drawn along the cutouts in the part, in accordance with the drawing. The archive includes: dxf (9 pcs.- files separately), Drawings (11 pages), Instructions (6 pages).
There is no engraving on the dxf, bending is performed along the line indicated by drop-shaped cutouts at the ends of the bending line.
If you need to create a stencil for printing in PDF format or create a DXF file with all the parts located on the sheet metal format you need, please contact me.
This digital product is not for distribution (dxf, PDF), it is intended for you and your production.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
Thank you and good luck with your work!
