Steel Sheet Metal Drawings Plans Pattern Template Fire Pit 5 Project Sculpture (dxf, PDF)

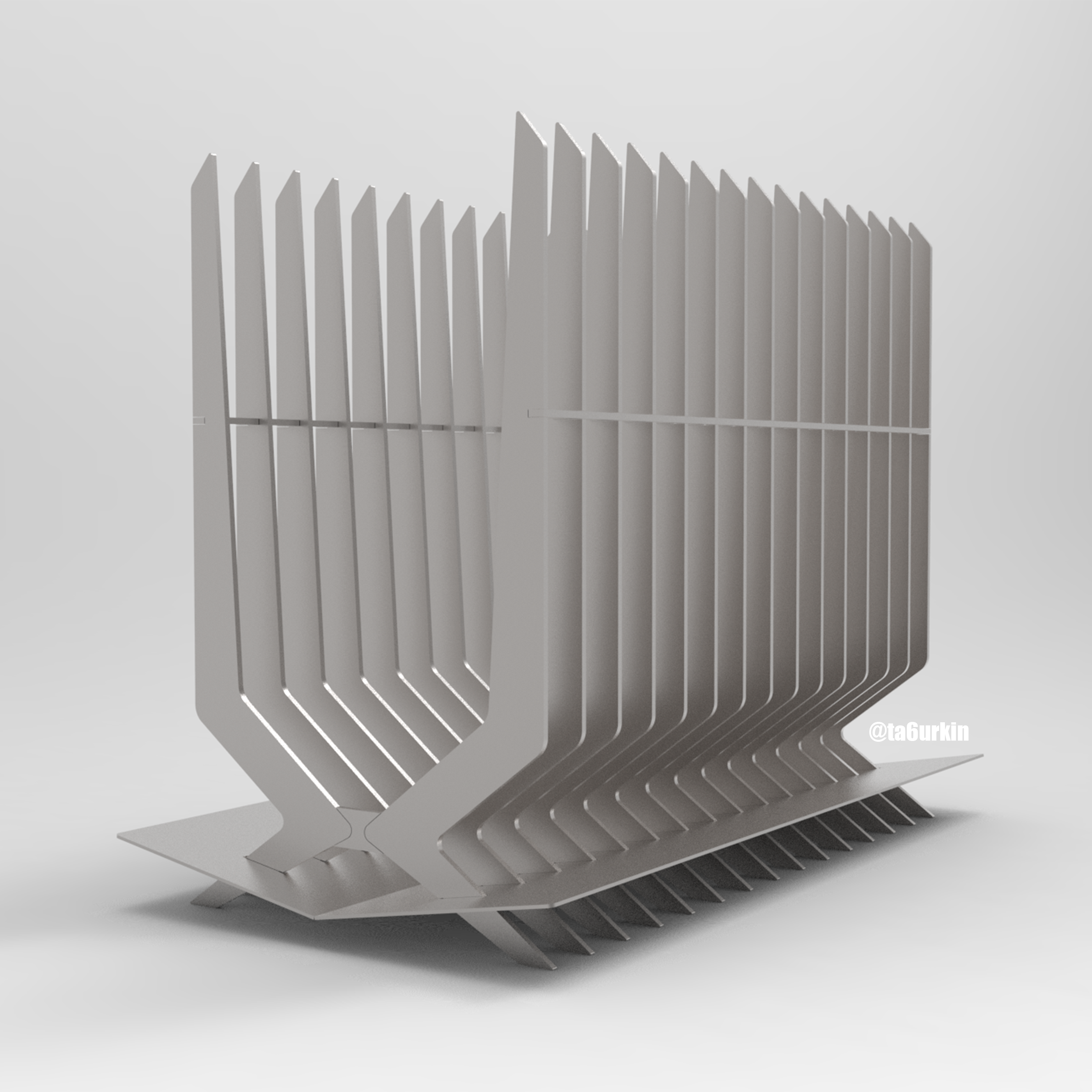

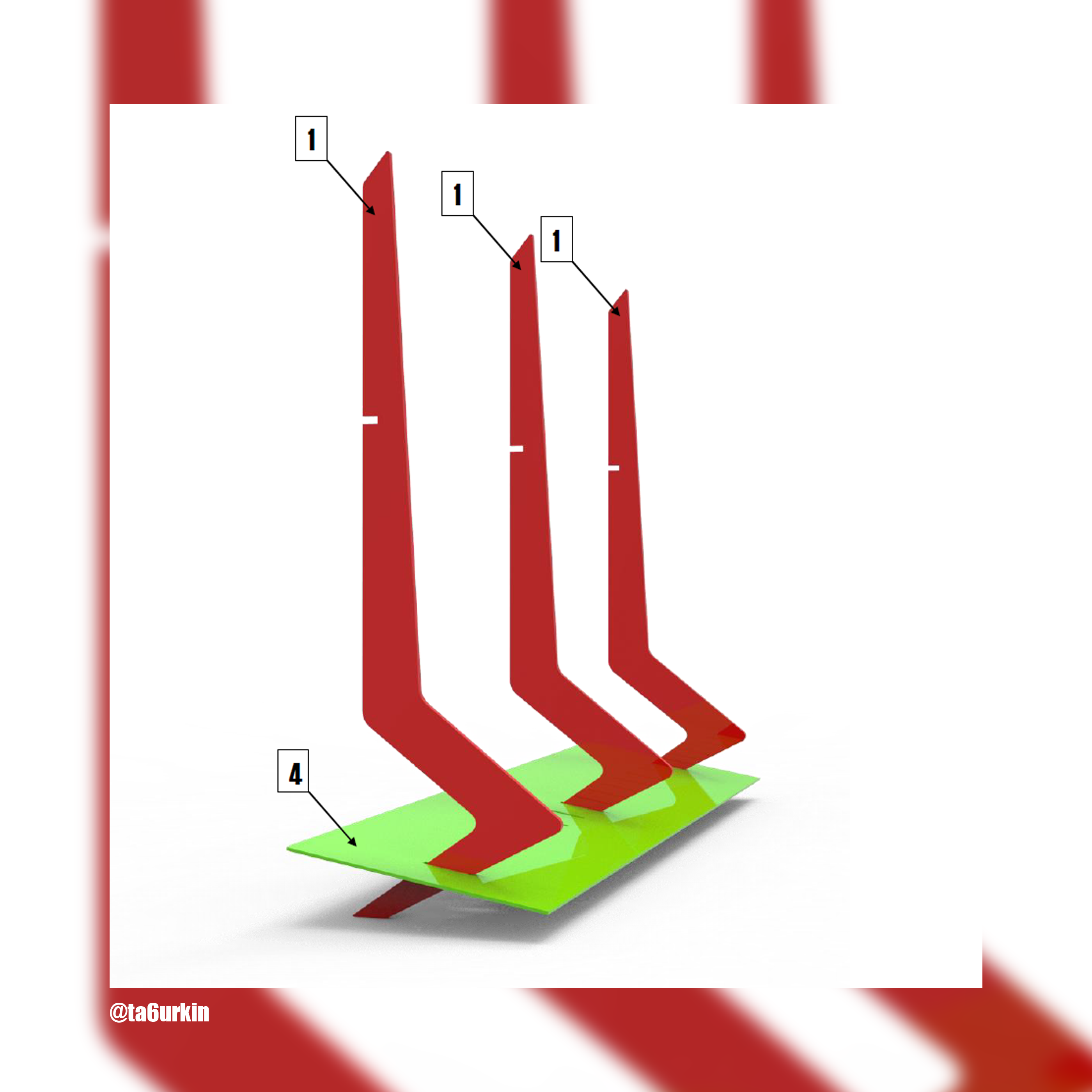

The new fire pit is designed to be made from 6mm steel, and the bottom plates from 3mm steel. Part bending is not required. 35 parts in 6mm steel, bottom two plates in 3mm steel. If necessary, I can change the thickness of the parts to the required one. The weight of the fire pit with the specified metal thickness is 61 kg. The project includes: dxf (4 pcs.), Drawings (2 pages), assembly instructions (5 pages).
This digital product is not for distribution (dxf, PDF), it is intended for you and your production.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
Thank you and good luck with your work!
