Welding Project Plans Drawings Balrog Head (DXF, PDF)

@ Gleb Taburkin

This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine or manually with a convenient cutting tool using a stencil (for example, a grinder). Also, you should be able to bend the parts on a bending machine or manually, at the end welding the parts together according to the instructions and, if desired, cleaning and painting the finished product.

Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.

145.00 ~ 156.49 $

Added to wishlistRemoved from wishlist 1

Sold: 0

Report Abuse

All questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail
The image of the sculpture of this project is based on the monster from the film adaptation of the book “The Lord of the Rings”.

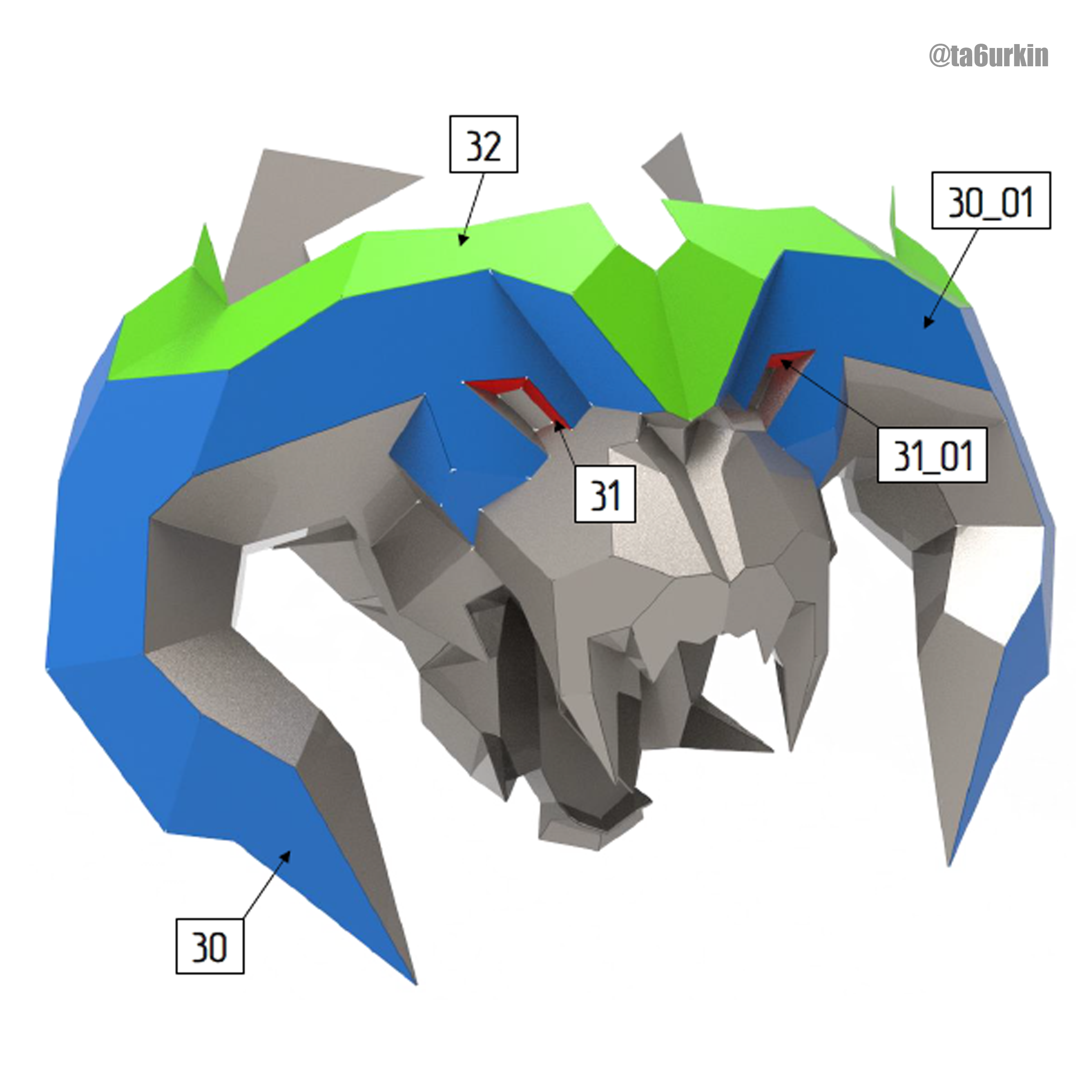

The Balrog Head involves the manufacture of steel with a thickness of 1.5 mm and a bending radius of 1 mm. The weight of the Balrog Head is about 32 kg. There are 60 details in total. The design documentation includes 38 pages, 36 of which are bending drawings. The instruction includes 20 pages in the order of assembly. The bend line is drawn along the cutouts in the part, in accordance with the drawing. Parts with the index “_01” in the instructions are bent mirror drawing. The archive includes: dxf (36 pcs.), Drawings (38 pages), Instructions (20 pages). Overall dimensions of the sculpture (LxWxH): 711Ñ…1202Ñ…896.

There is no engraving on the dxf, bending is performed along the line indicated by drop-shaped cutouts at the ends of the bending line.

DXF are available both in the form of parts separately, and placed for a sheet of metal with a size of 2400Ñ…1200 (2pcs), 2500x1250mm (2pcs), 3000Ñ…1500 (1pc).

If you need to create a stencil for printing in PDF format or create a DXF file with all the parts located on the sheet metal format you need, please contact me.

The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities.

3D models are not included in the project, if you need, then STP models of all parts, except for mirror parts, (not assembled) can be provided for an additional fee. But I do not guarantee that your bending calculation software will display the models correctly.

Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.

If you do not download the project yourself, I will send it to you by e-mail within 24 hours, you can also contact me if you are unable to download the project.

This project is being sold only by me, if someone else offers you my projects for purchase, then these are scammers.

Thank you and good luck with your work!
