Welding Project Plans Drawings Stove 3 (DXF, PDF)

All questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail

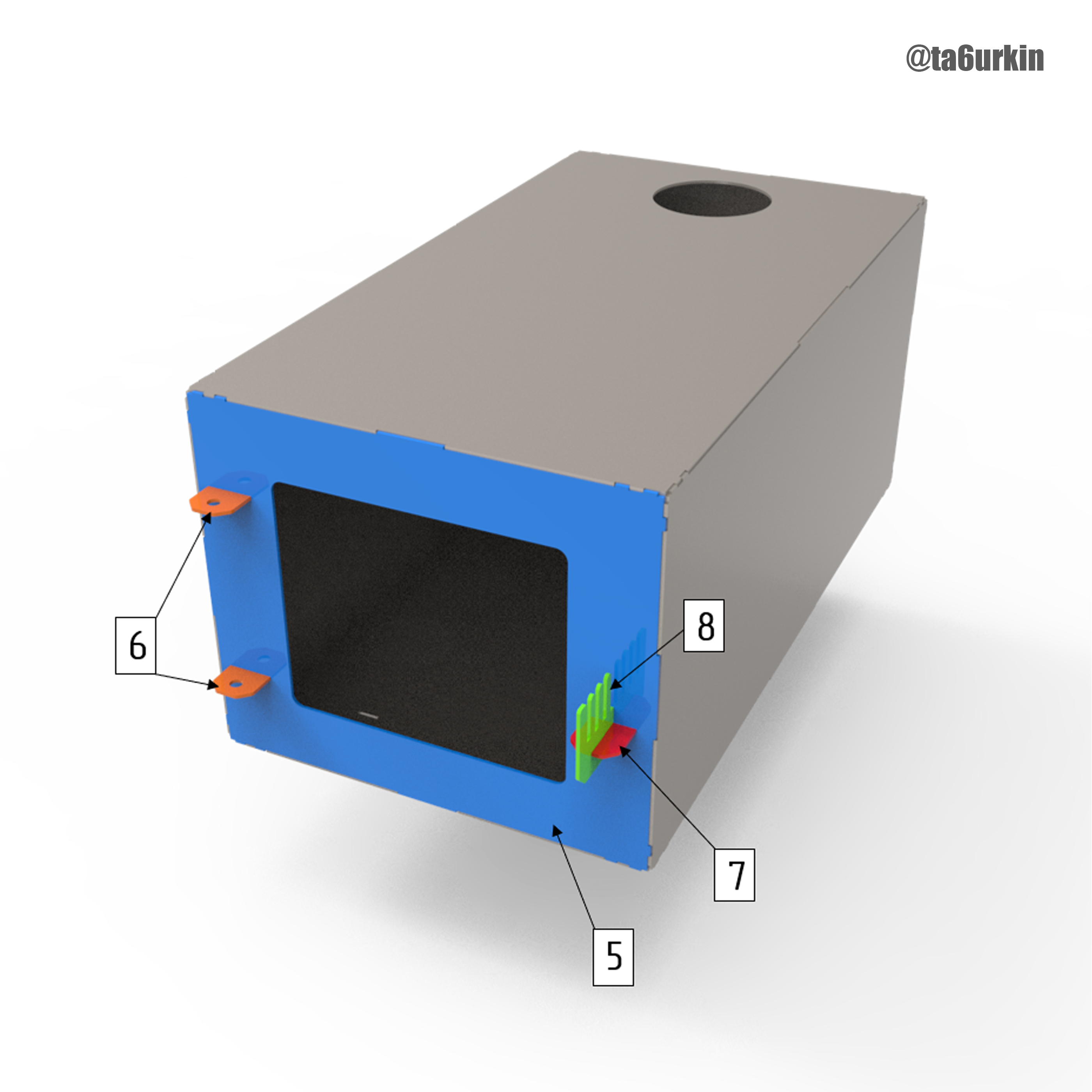

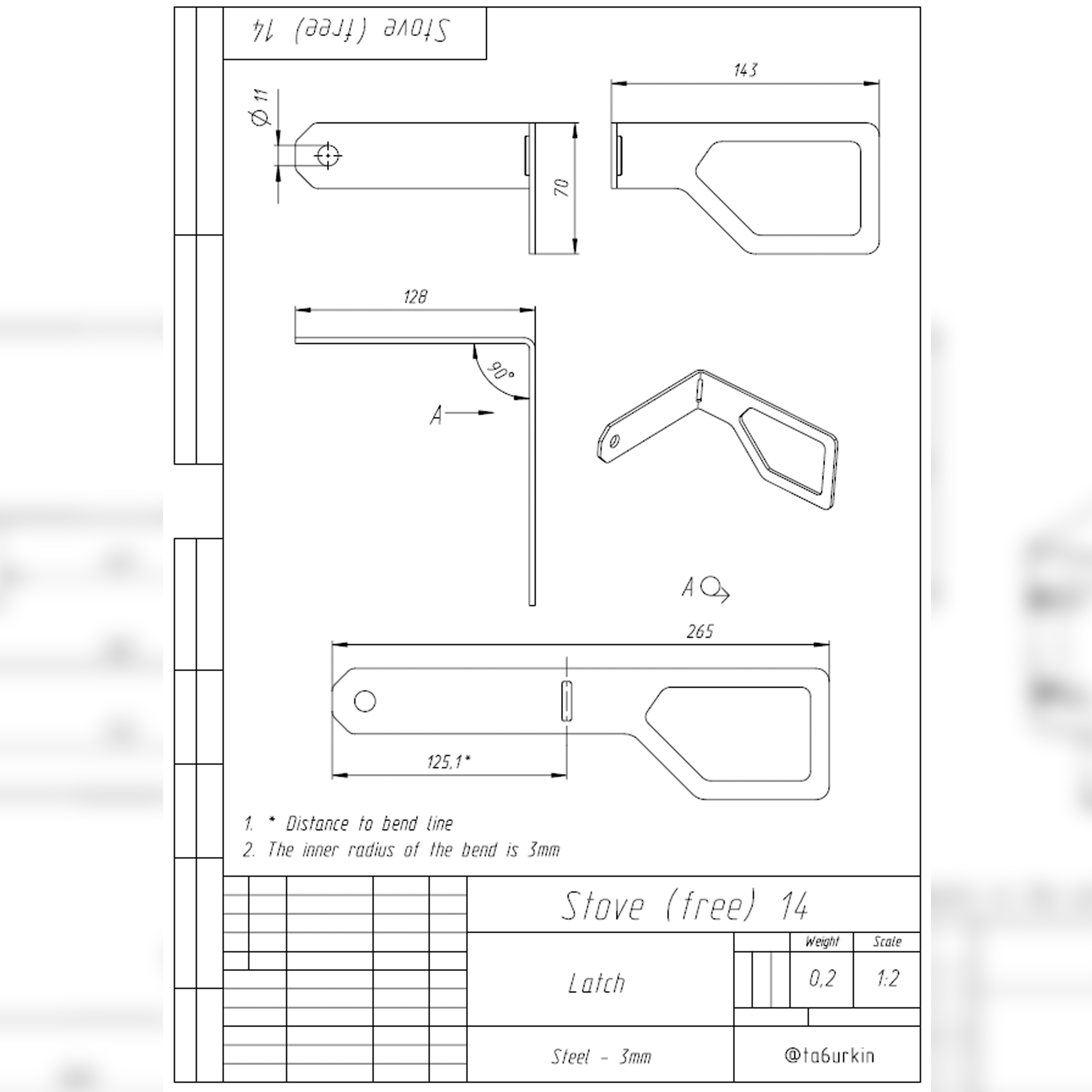

A very simple oven. There is no bend, except for a latch that can be bent by hand, you can see the weight and dimensions on the attached drawings. Material – steel 3mm. All tongue and groove joints are designed for 3mm. This stove is designed for a quick production for itself, I am aware of the design flaws, for example, it is not so convenient to remove the ashes. But everything is done to minimize the details and you can modify the oven yourself, according to your needs.

The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished stove) in any quantities.

Please note that the drawings are distributed on the condition that your finished product is a finished stove, the sale of welding kits based on my drawings is strictly prohibited.

If you do not download the project yourself, I will send it to you by e-mail within 24 hours, you can also contact me if you are unable to download the project.

This project is being sold only by me, if someone else offers you my projects for purchase, then these are scammers.

Thank you and good luck with your work!
