DIY Welding Project Plans Drawings Skull Ashtray (DXF, PDF)

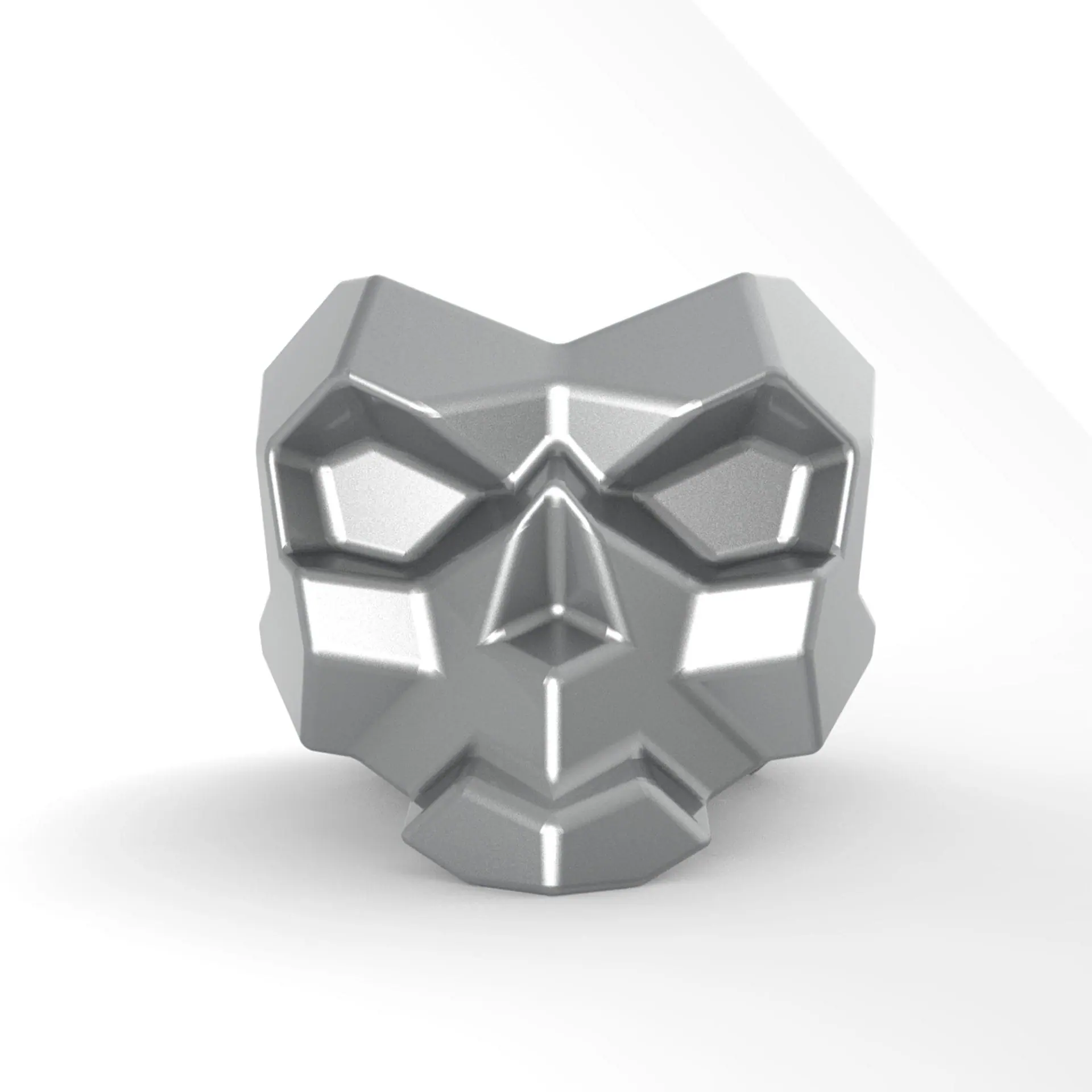

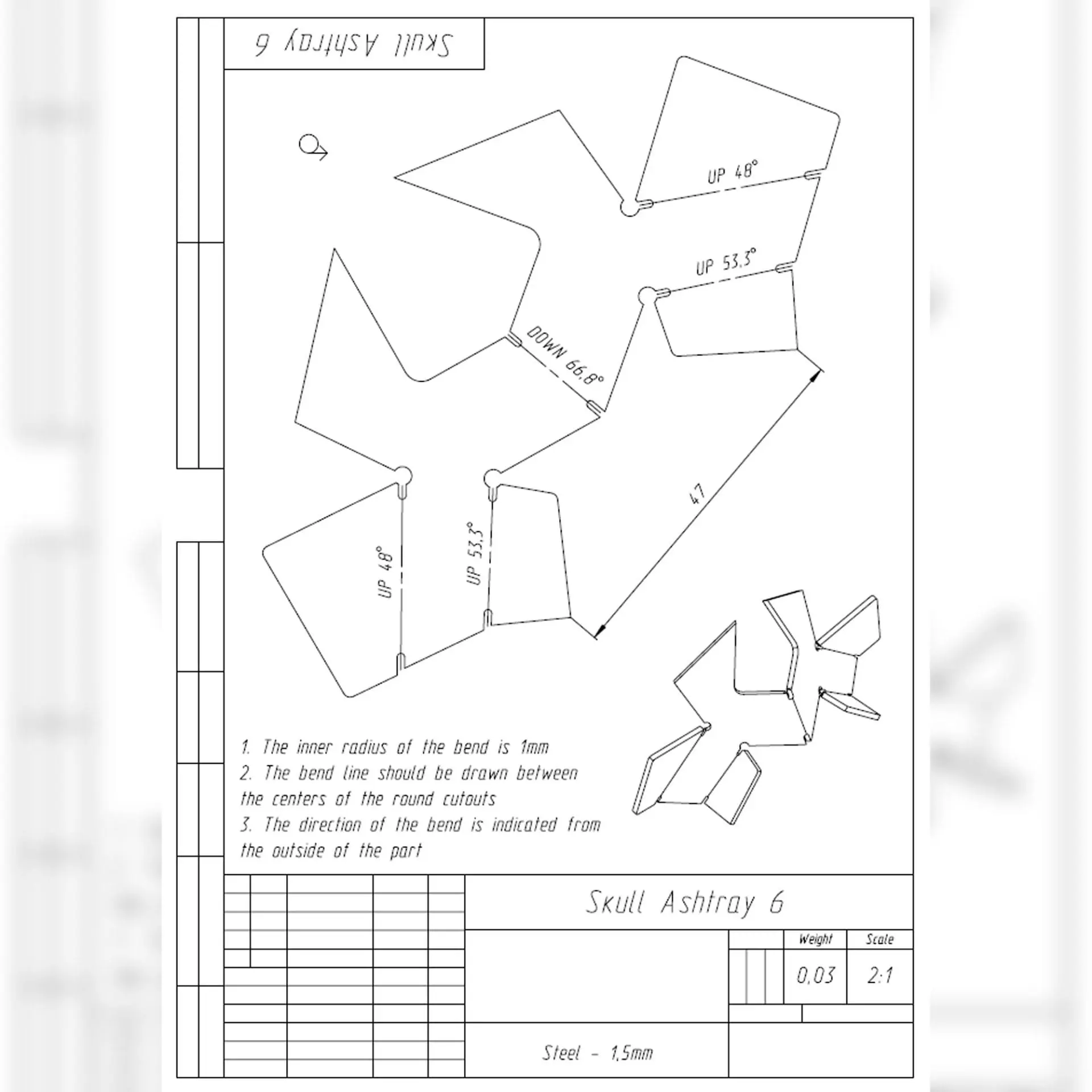

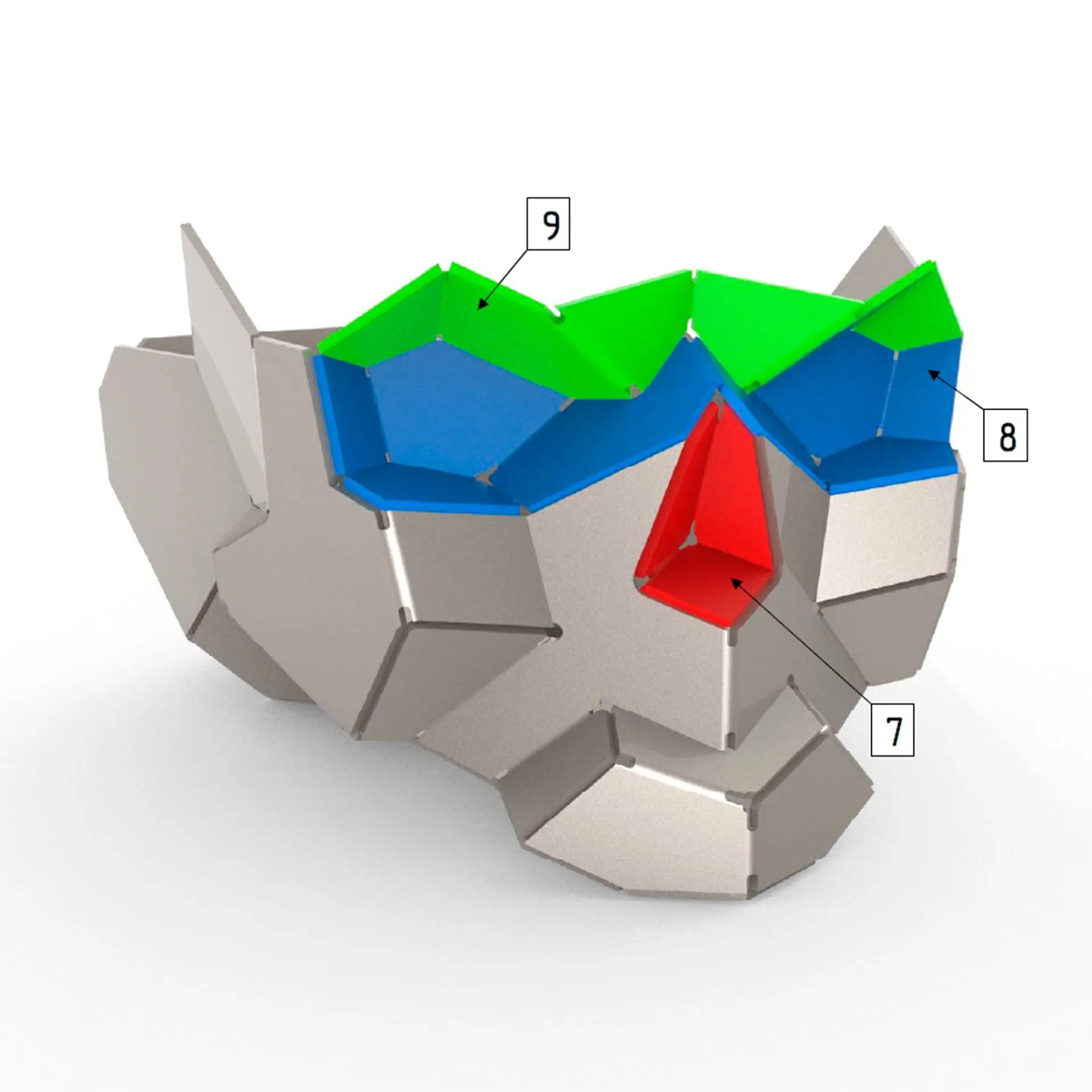

The Skull Ashtray involves the manufacture of steel with a thickness 1,5 mm and a bending radius 1 mm. The project was developed based on the improved geometry of the Skull Fire Pit. The weight of the Skull Ashtray is about 0,9 kg. There are 15 parts in total. The design documentation includes 15 pages, 13 of which are bending drawings. The instruction includes 8 pages in the order of assembly. The bend line is drawn along the cutouts in the part, in accordance with the drawing. The archive includes: dxf (15 pcs.- files separately and for a sheet), Drawings (15 pages), Instructions (8 pages). Overall dimensions of the sculpture (LxWxH): 182х138х108 mm.
The project is available DXF with engraving and without engraving. Remember to set up the layers before cutting, otherwise the machine may cut the parts along the engraving line. The engraving layer is on the inside of the part, the bending in the drawings is indicated on the outside of the part. Cutting layer – “Cut”, engraving layer – “Engrav”.
This project already has a template for printing on paper in A4 format.
The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
3D models are not included in the project, if you need, then STP models of all parts, except for mirror parts, (not assembled) can be provided for an additional fee. But I do not guarantee that your bending calculation software will display the models correctly.
If you do not download the project yourself, I will send it to you by e-mail within 24 hours, you can also contact me if you are unable to download the project.
This project is being sold only by me, if someone else offers you my projects for purchase, then these are scammers.
Thank you and good luck with your work!
