Steel Sheet Metal Drawings Plans Pattern Template Project Fire Pit 4 Sculpture (dxf, PDF)
A new project of a Fire Pit with a brazier and a grill grate.
Made from 3mm steel. Cut out the grill grate from stainless steel.

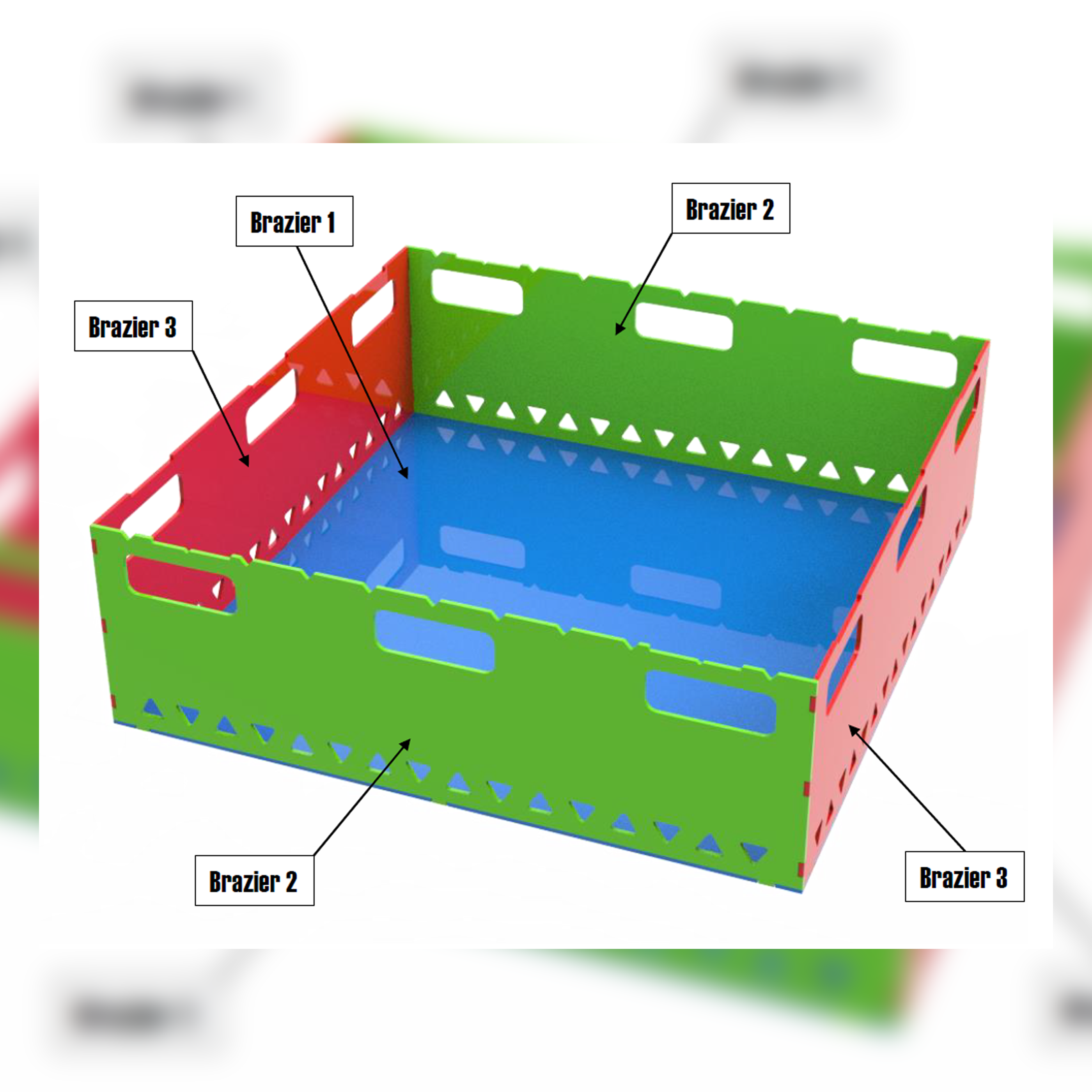

All parts are positioned among themselves “thorn-groove”. A bending machine is not needed for manufacturing. To facilitate transportation, the fire pit is disassembled into several parts. The total weight of the structure is approximately 117 kg. The following fasteners are required for assembly: DIN 933 – M8x25 (16 pcs.), DIN 934 – M8 (16 pcs.), DIN 9021 – M8 (32 pcs.). The project includes: dxf (19 pcs.), Drawings (8 pages), assembly instructions (13 pages).
This digital product is not for distribution (dxf, PDF), it is intended for you and your production.
Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.
Thank you and good luck with your work!
